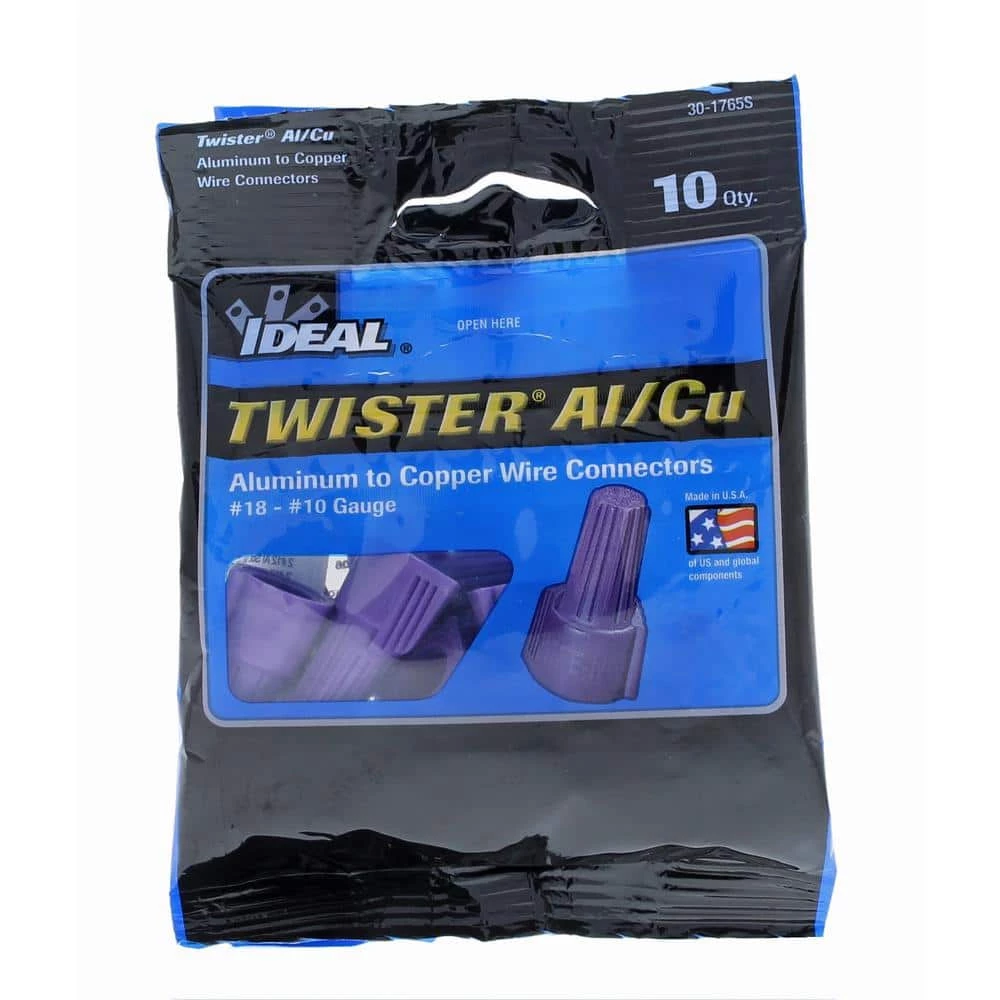

Twister Al/Cu Wire Connectors, Purple (10-Pack) by IDEAL
Original price was: $48.00.$31.20Current price is: $31.20.
Use on aluminum- to-copper and copper-to-copper connections
Provides a secure connection and prevents aluminum oxidation
Swept-wings easily twist on and offer improved conductivity
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange
The Twister AL/CU Wire Connector is the only UL Listed aluminum-to-copper twist-on connector. The connector prevents aluminum oxidation while providing a secure connection. Filled with an anti-oxidant compound, the Twister AL/CU easily twists on with swept-wings making a comfortable connection with improved conductivity and cooler connections.

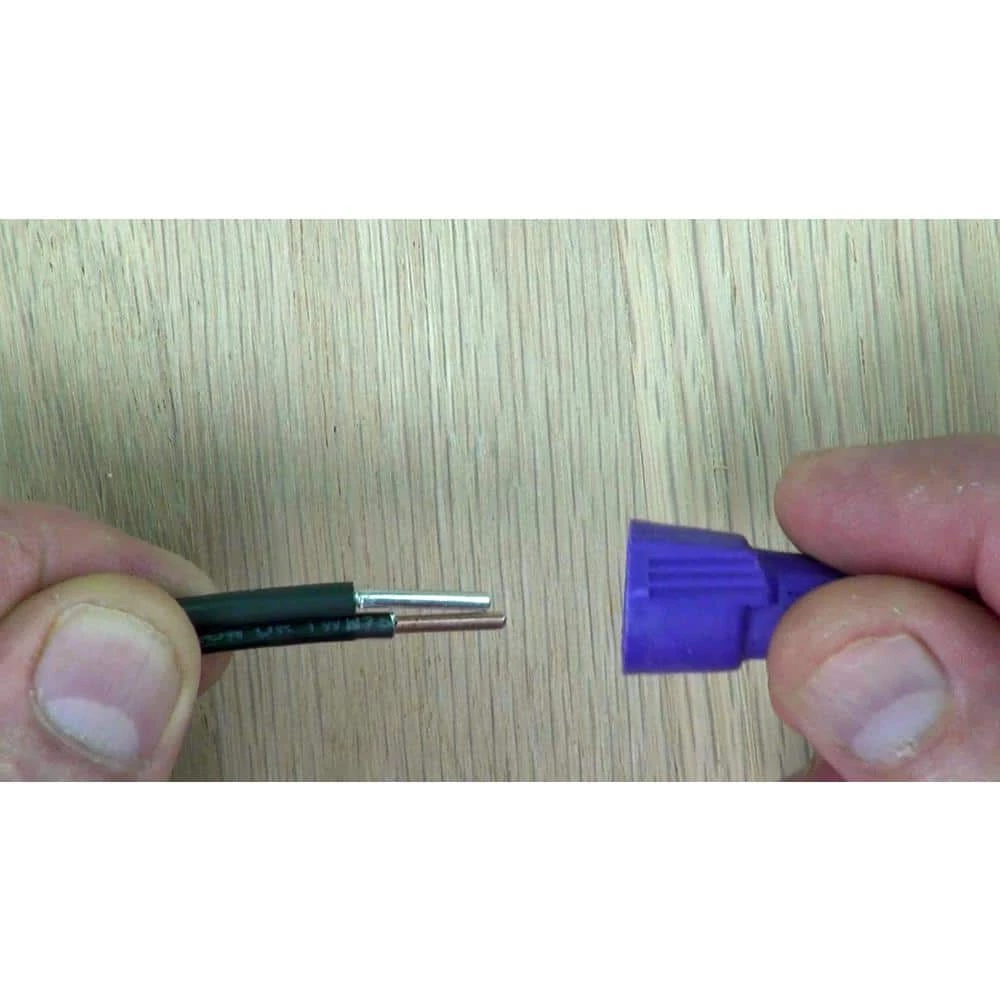

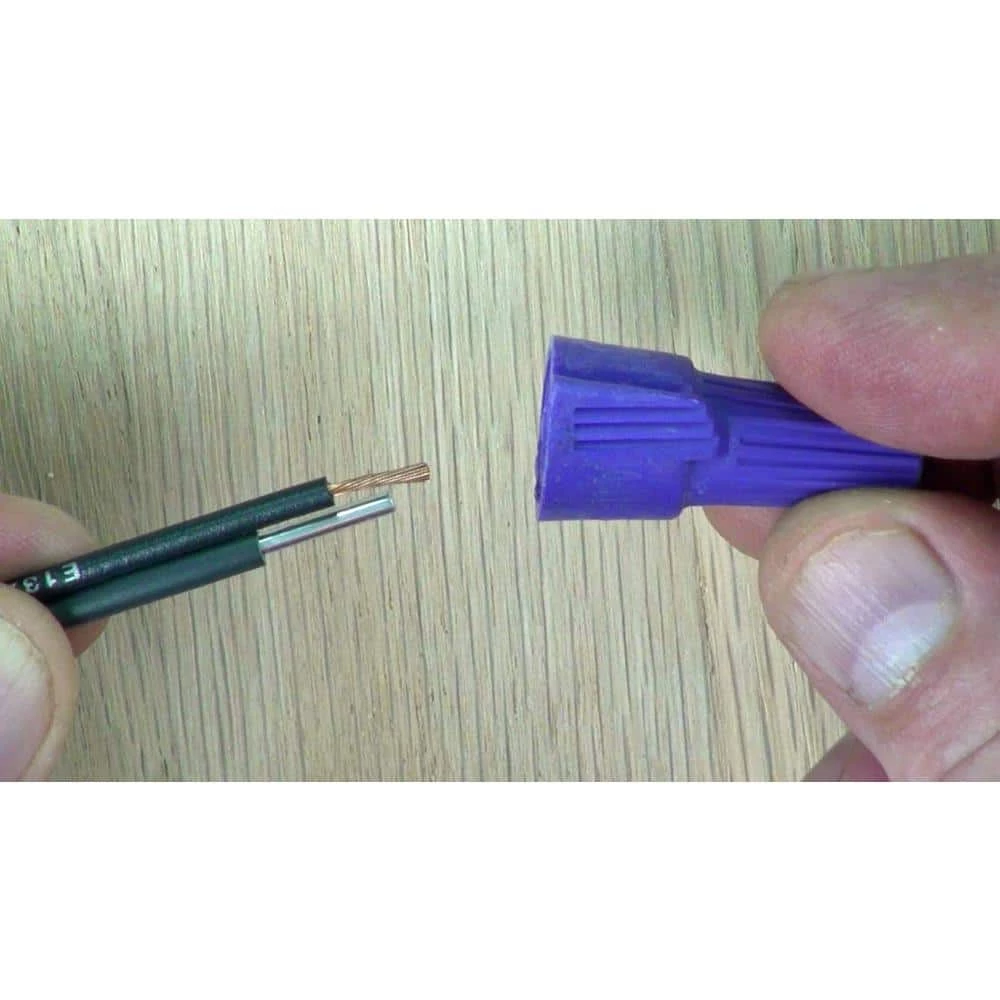

- Aluminum-to-copper and copper-to-copper twist-on connector – do not use on aluminum-to-aluminum connections
- UL Listed and CSA Certified for aluminum-to-copper connections, as well as the only twist-on solution to comply with the National Electric Code Section #110-14 (b)

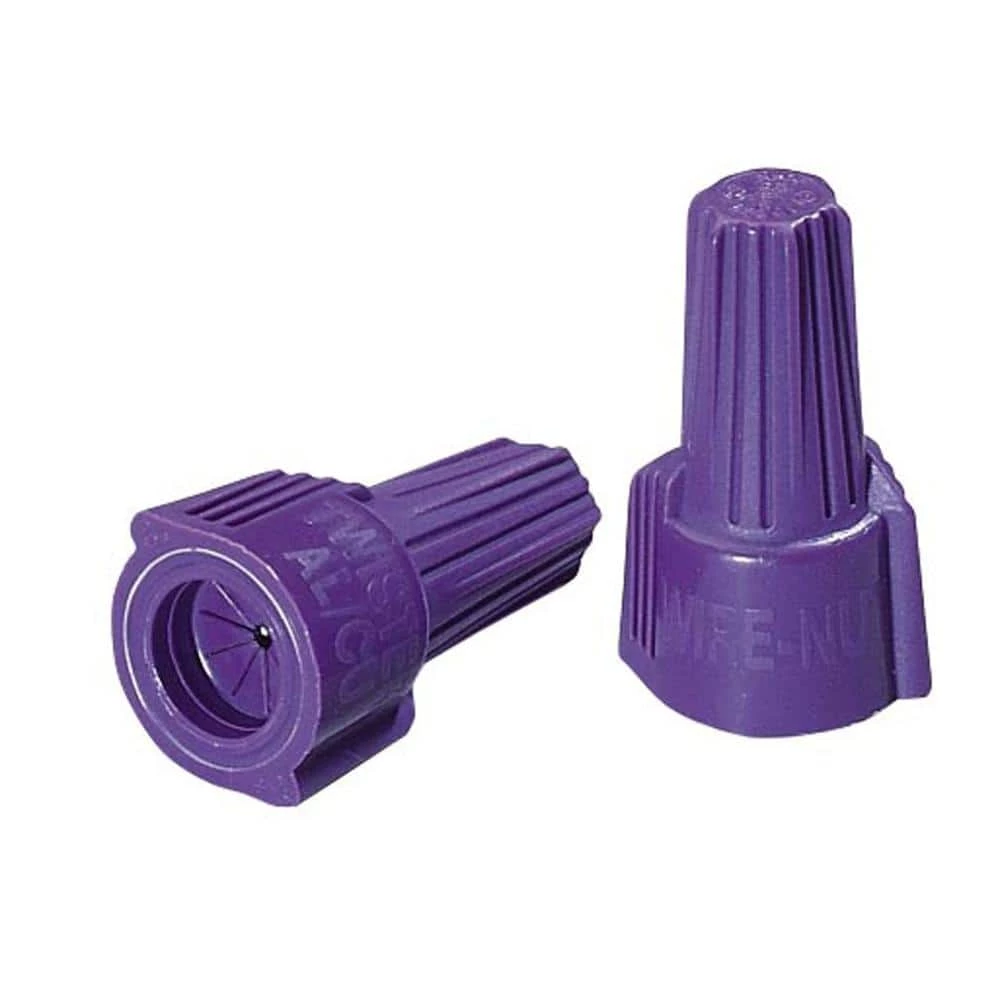

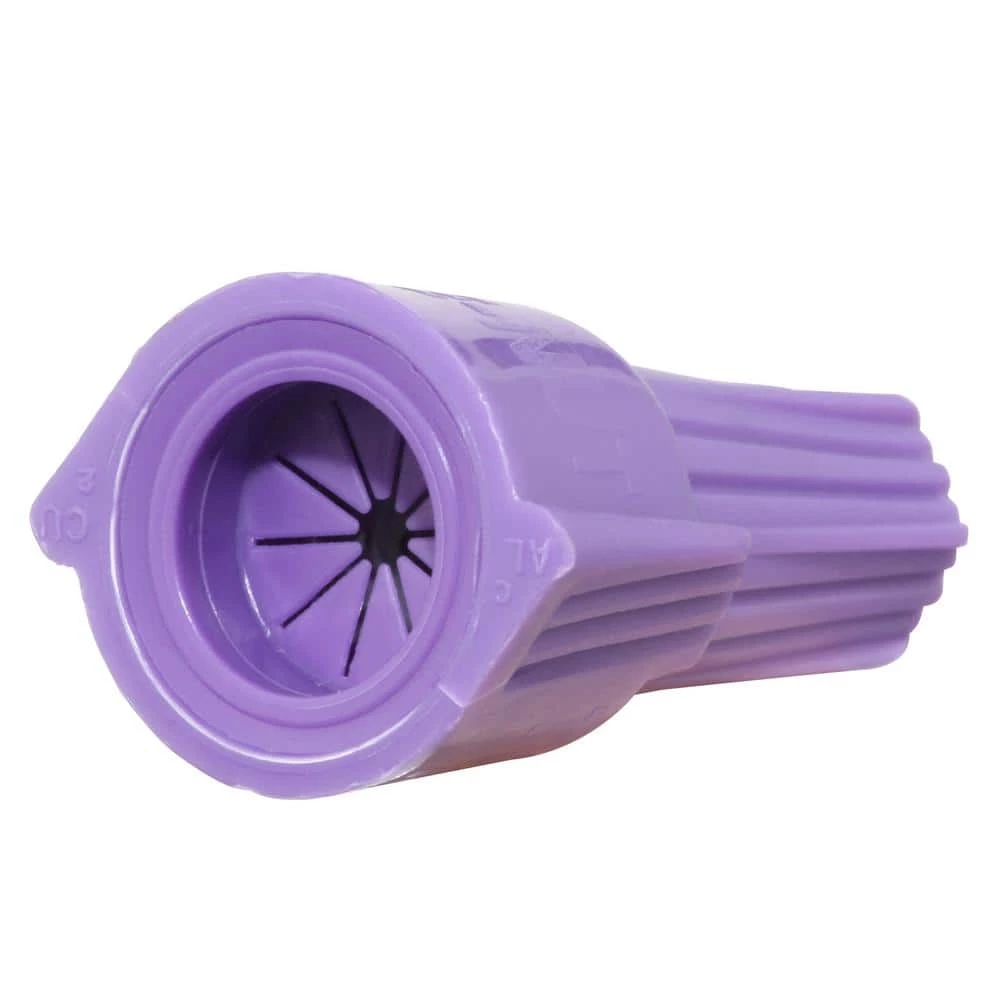

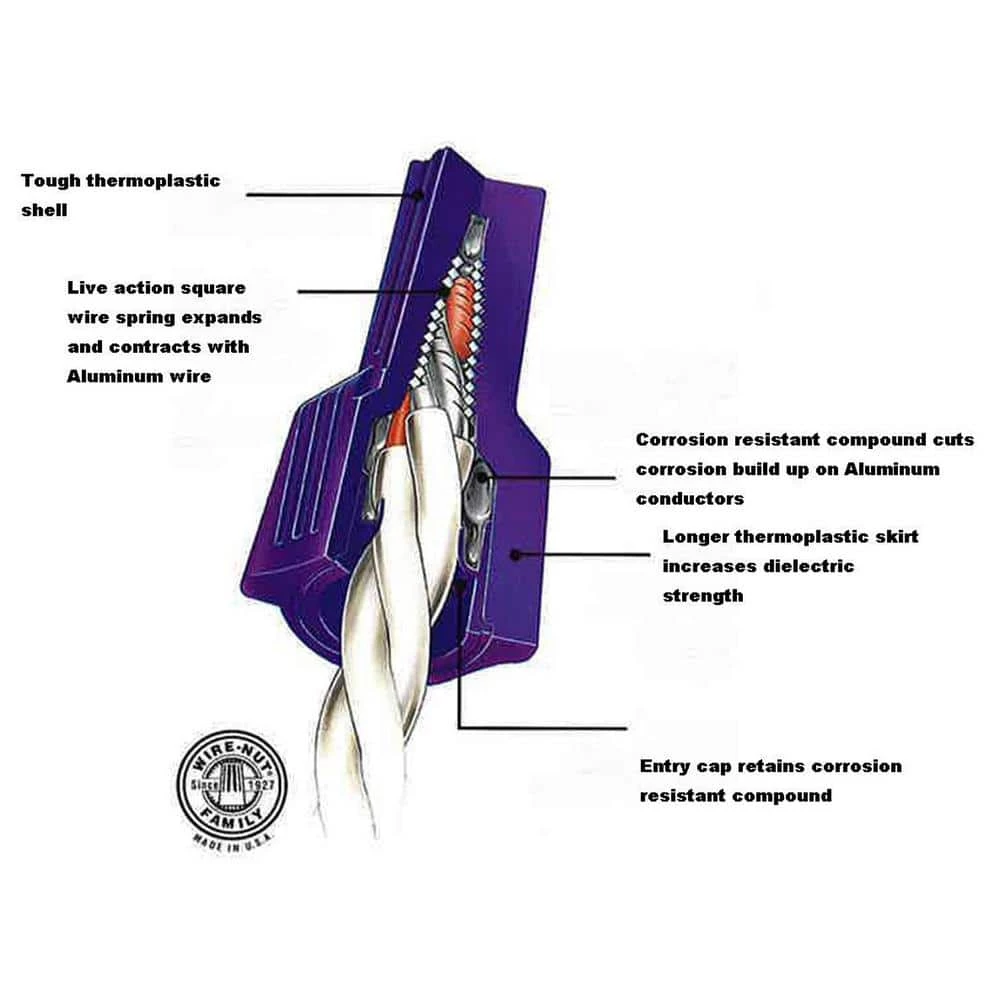

- Compact, 1-piece design features ribbed cap, swept wings and hexagonal head for easy installation by hand or with standard nutdriver

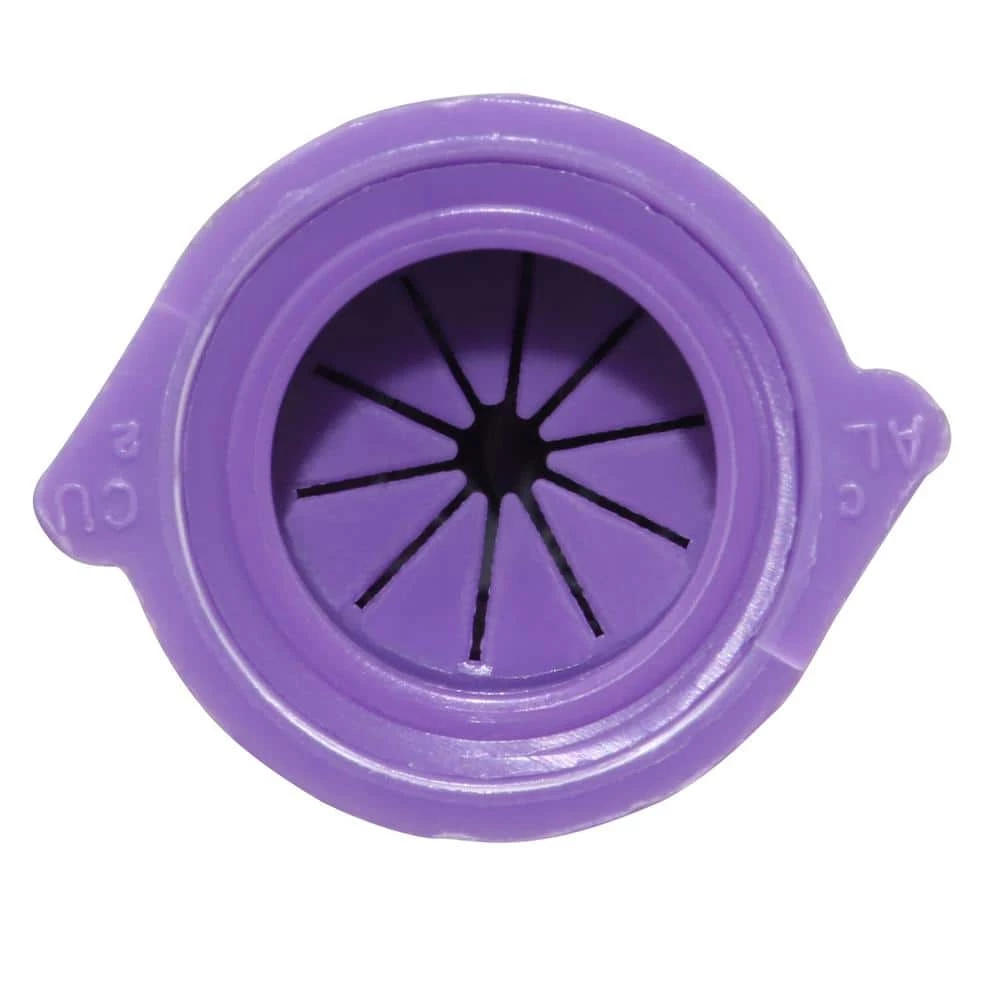

- Live-action, square-wire spring expands and contracts with aluminum wiring
- Deep skirt provides maximum dielectric strength
- Tough UL 94-Volt-2 flame-retardant shell rated at 221 degree F
- UL listed to 486C and CSA certified to C22.2 #188
- Pre-filled antioxidant compound prevents oxidation of aluminum conductors
- Global components
- Approved for bonding and grounding applications

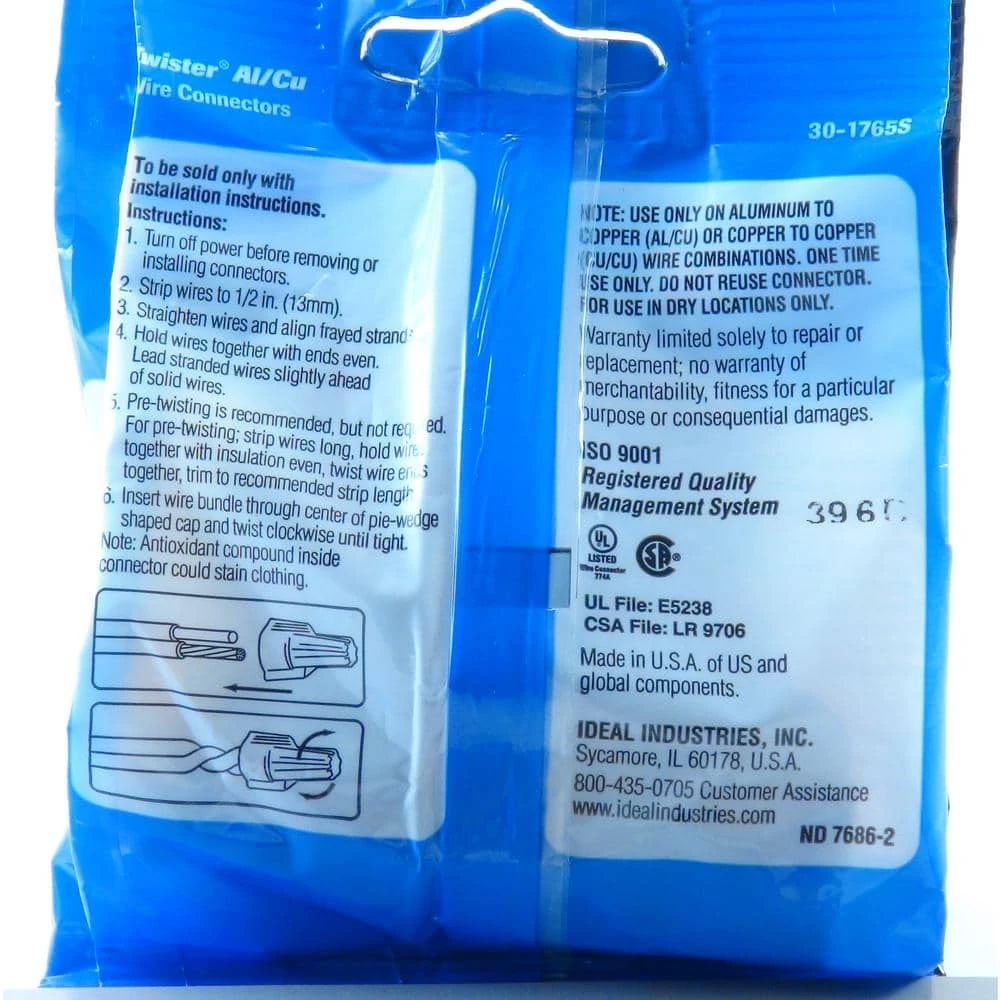

- Twister AL/CU wire connectors are designed as a one-use only connection – do not reuse

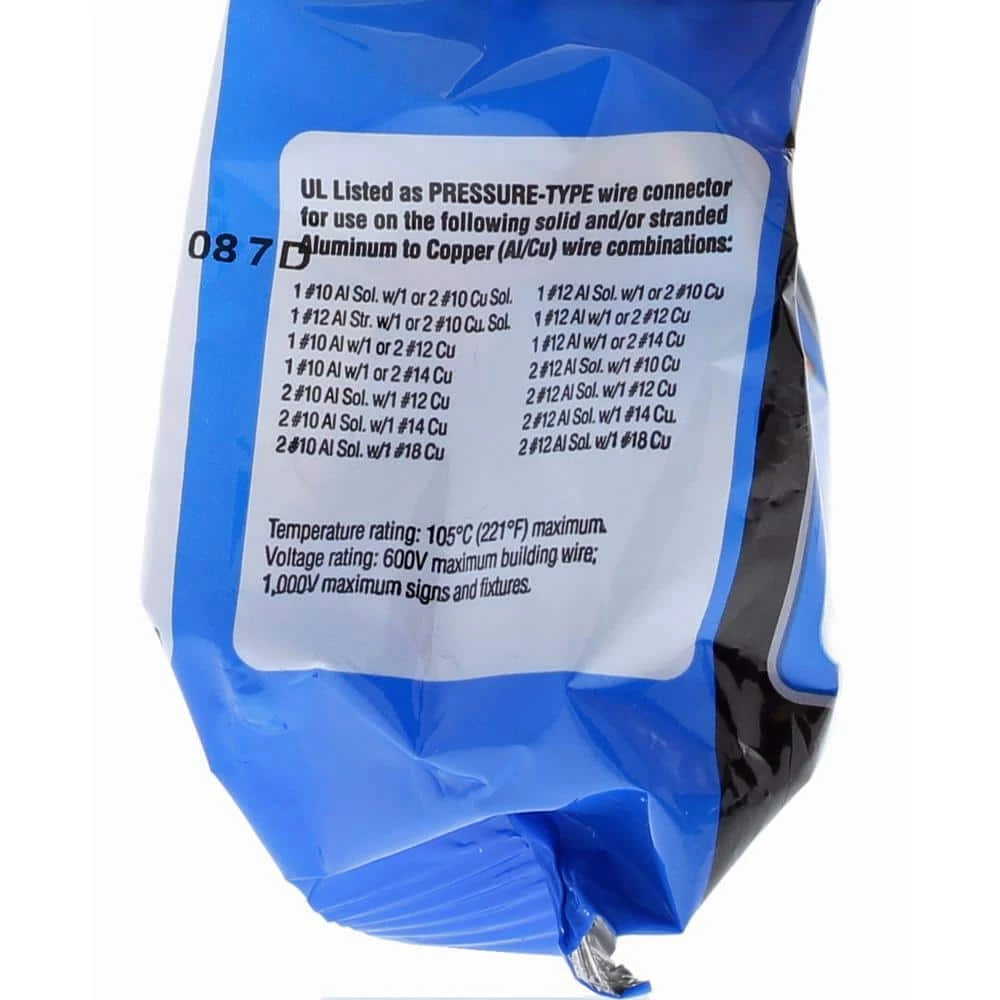

- Minimum wire capacity: 1 #12 Al with 1 #18 Cu
- Electrical product type: wire connector
- Maximum wire capacity: 1 #10 Al solid with 2 #10 Cu solid warranty/certifications
- Certifications and listings: UL listed to 486C and CSA certified to C22.2 #188
| Color Family | Purple |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | 1 #10 AWG Al solid w/2 #10 Cu solid AWG |
| Minimum Wire Capacity | 1 #12 AWG Al w/2 #18 AWG Cu |
| Package Quantity | 10 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | See http://www.idealind.com or call Customer Assistance for warranty details. |
| Connector Depth (in.) | .813 |
| Connector Height (in.) | 1.344 |
| Connector Width (in.) | .813 |
