Steel Crimp Sleeve Connector (Bags of 100, Standard Package 2 Bags) by IDEAL
Original price was: $22.26.$13.36Current price is: $13.36.

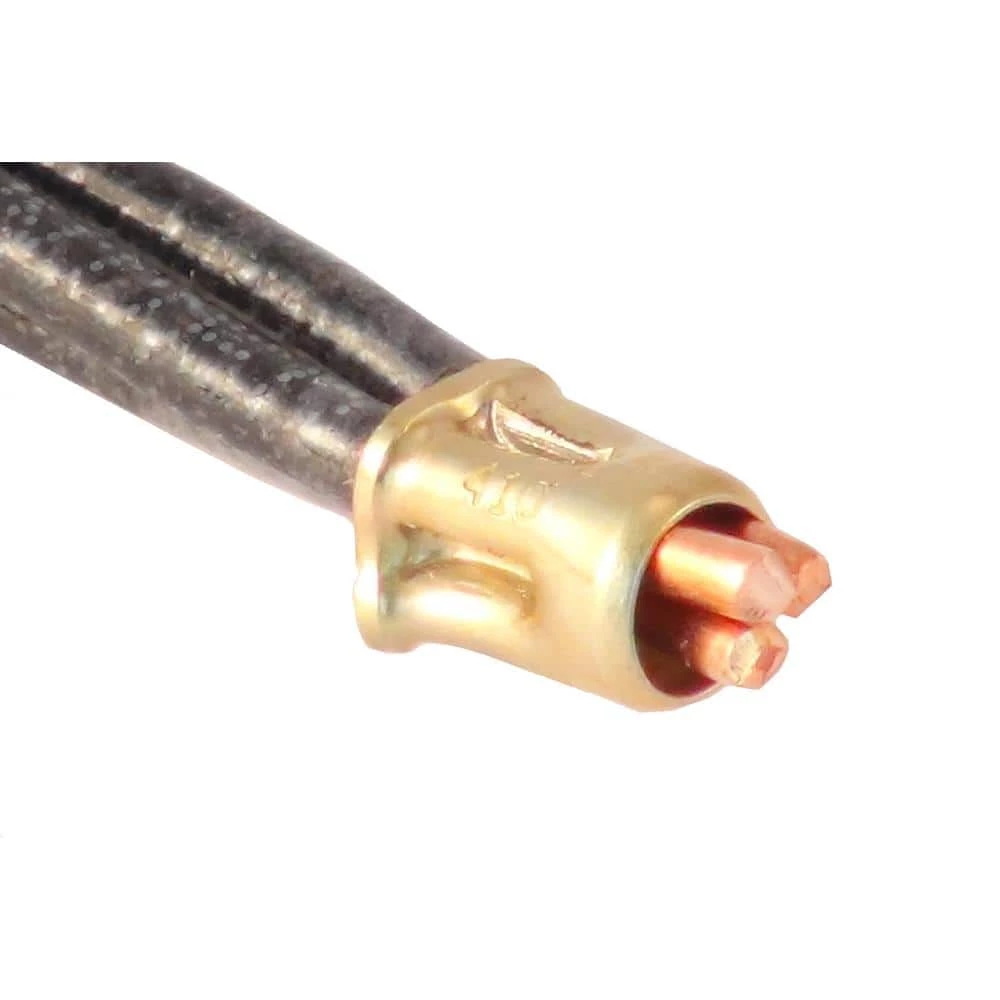

Long zinc-plated steel sleeves maximize contact with conductors
Designed for making fast, permanent, connections
Handles multiple wires from 18 AWG to 10 AWG
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange
Ideal’s crimp connectors are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
- 600-Volt rated 18 – 10 AWG
- Long-zinc plated steel sleeves maximize contact area with conductors
- UL listed to 486C and CSA certified to C22.2 #188; comply with Federal specification W-S-610E

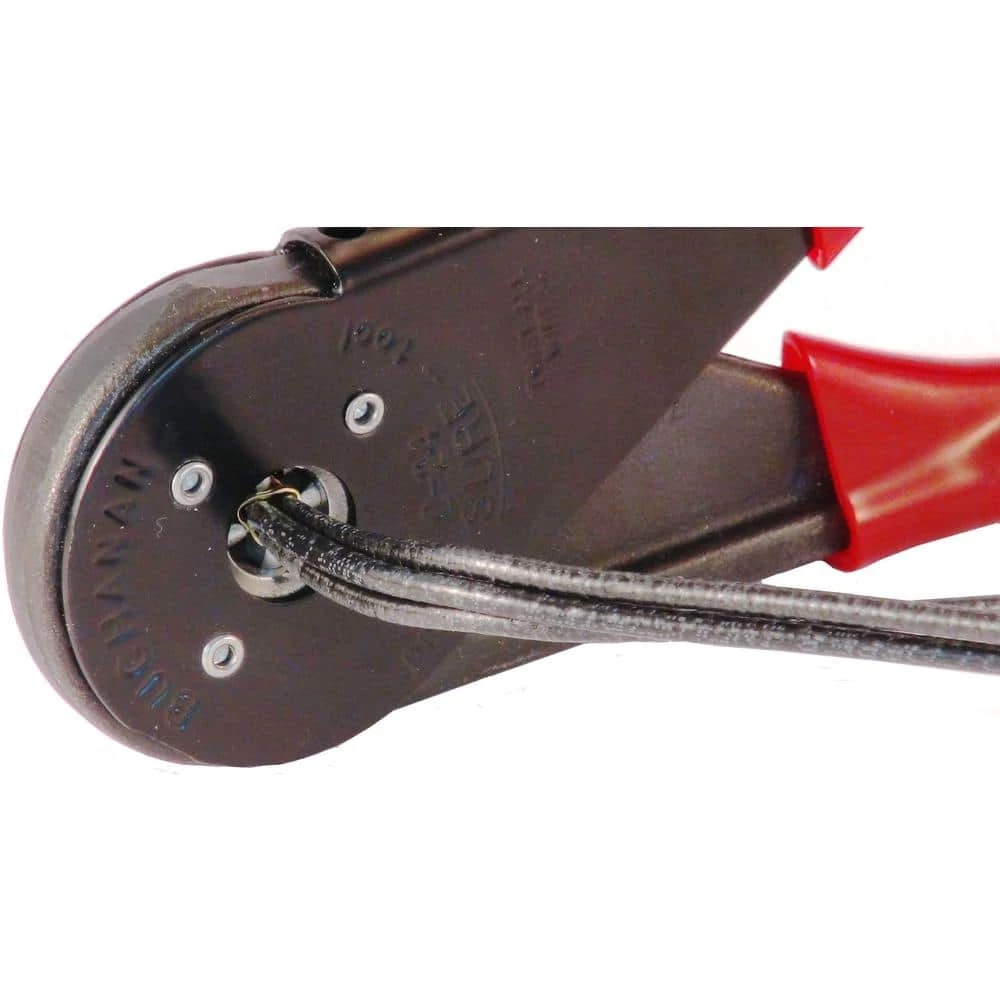

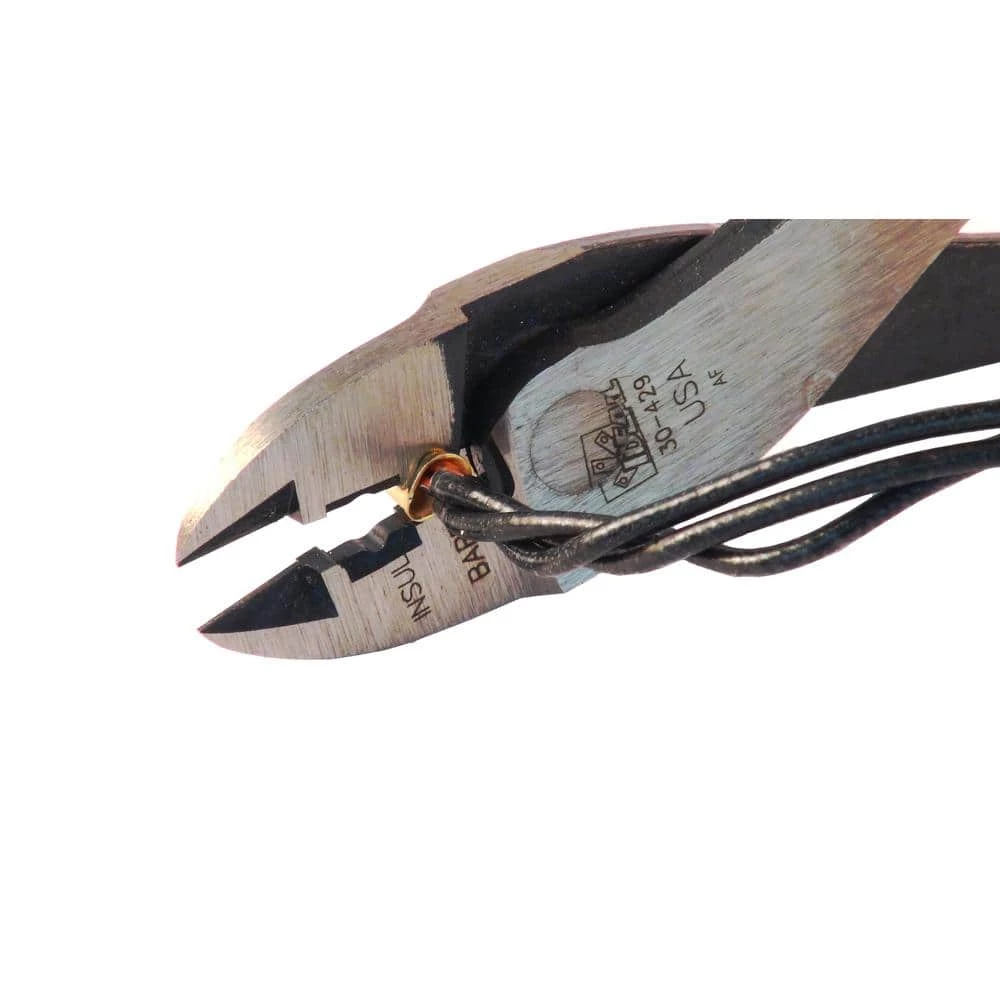

- Ideal hand tools U.L. listed for model 410 – 30-425, 30-429, 30-430
- Temperature rating 105°C (221°F)
| Color Family | Metallic |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | Max 2 #10 & 2 #14 AWG |
| Minimum Wire Capacity | Min 1 #14 &1 #18 AWG |
| Package Quantity | 100 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | See http://www.idealind.com or call Customer Assistance for warranty details. |
| Connector Depth (in.) | .20 |
| Connector Height (in.) | .38 |
| Connector Width (in.) | .20 |
