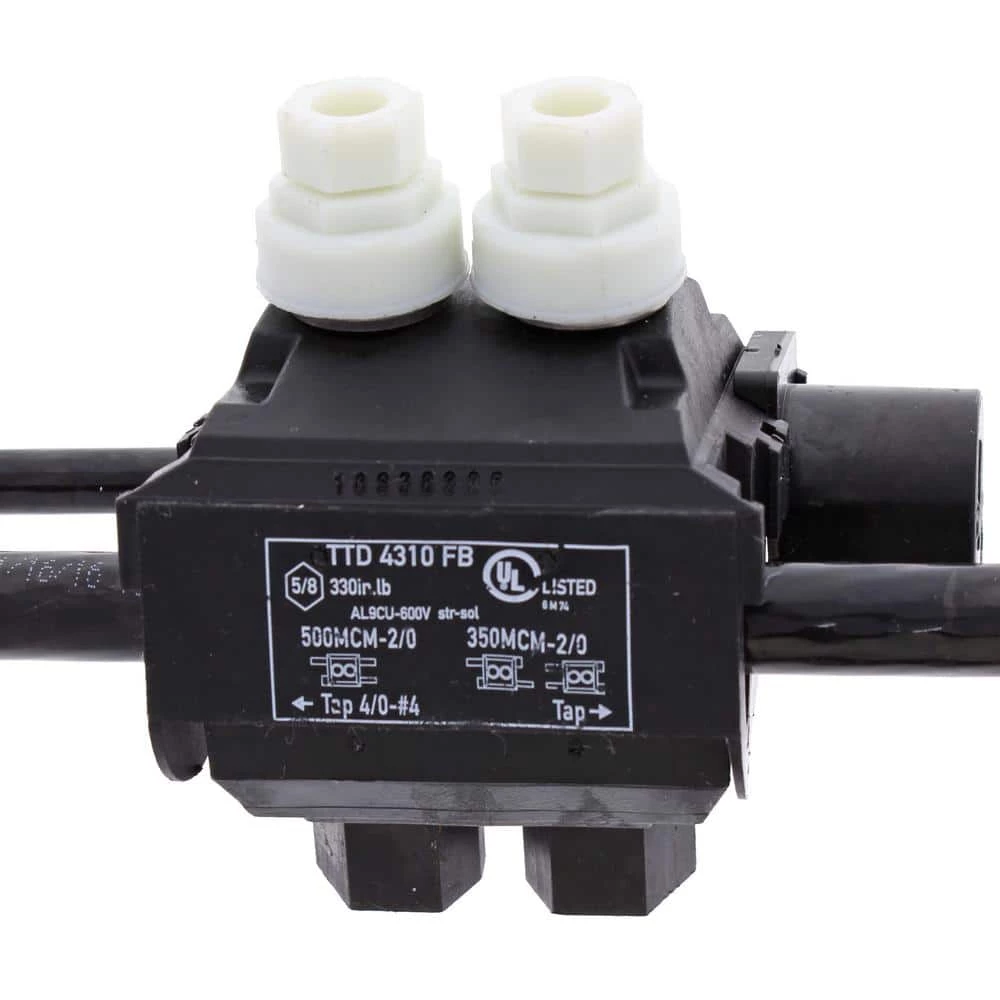

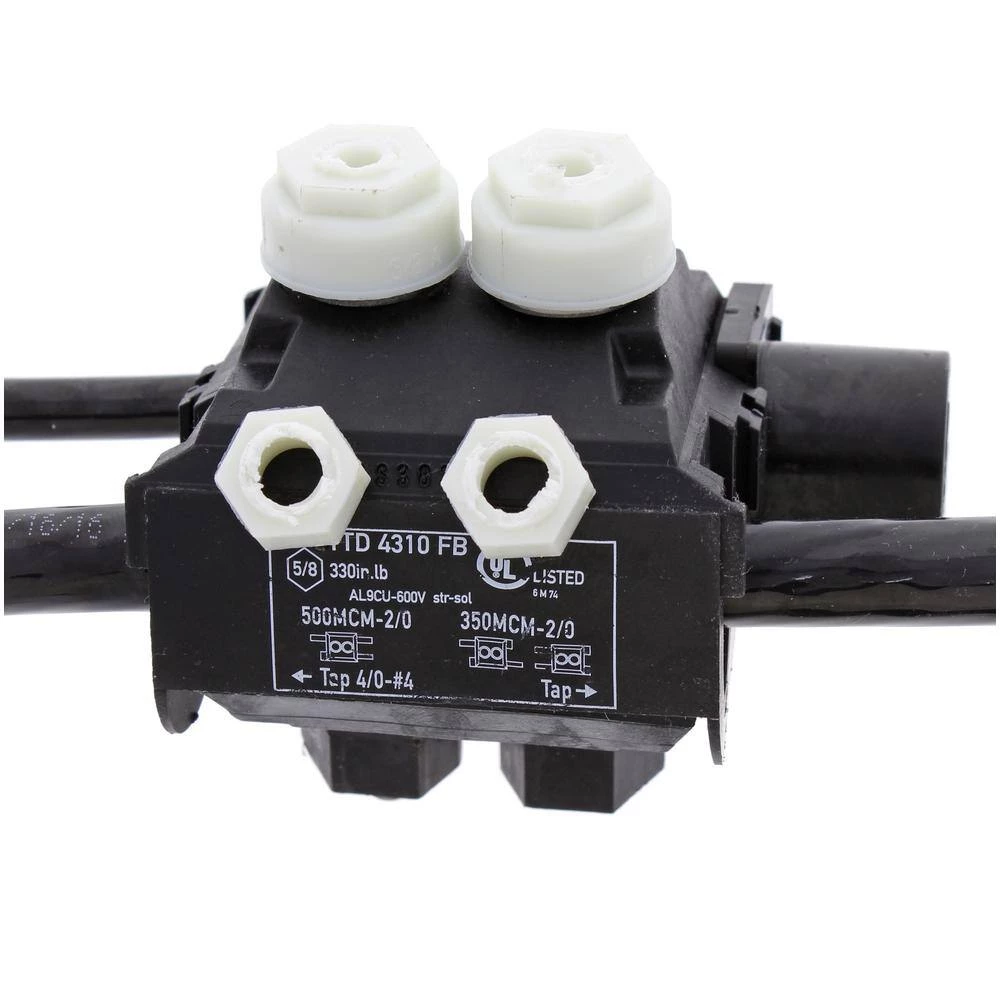

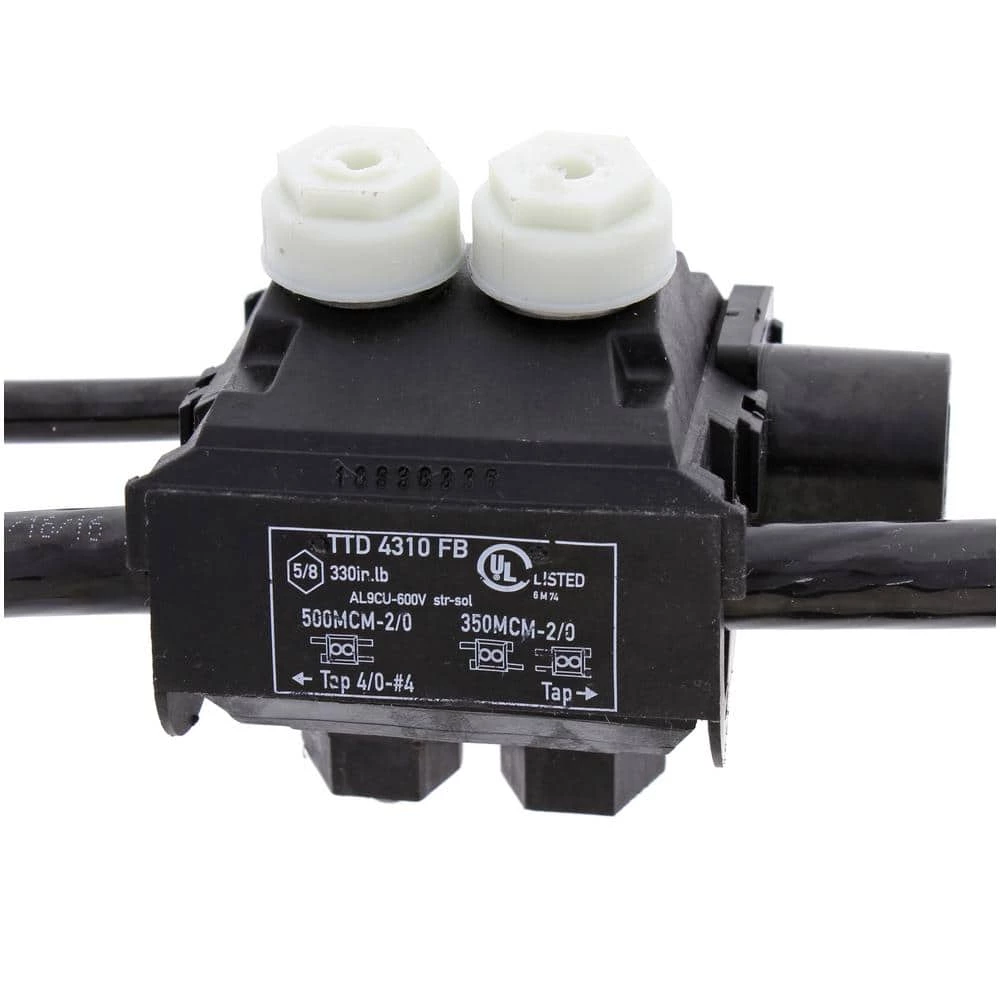

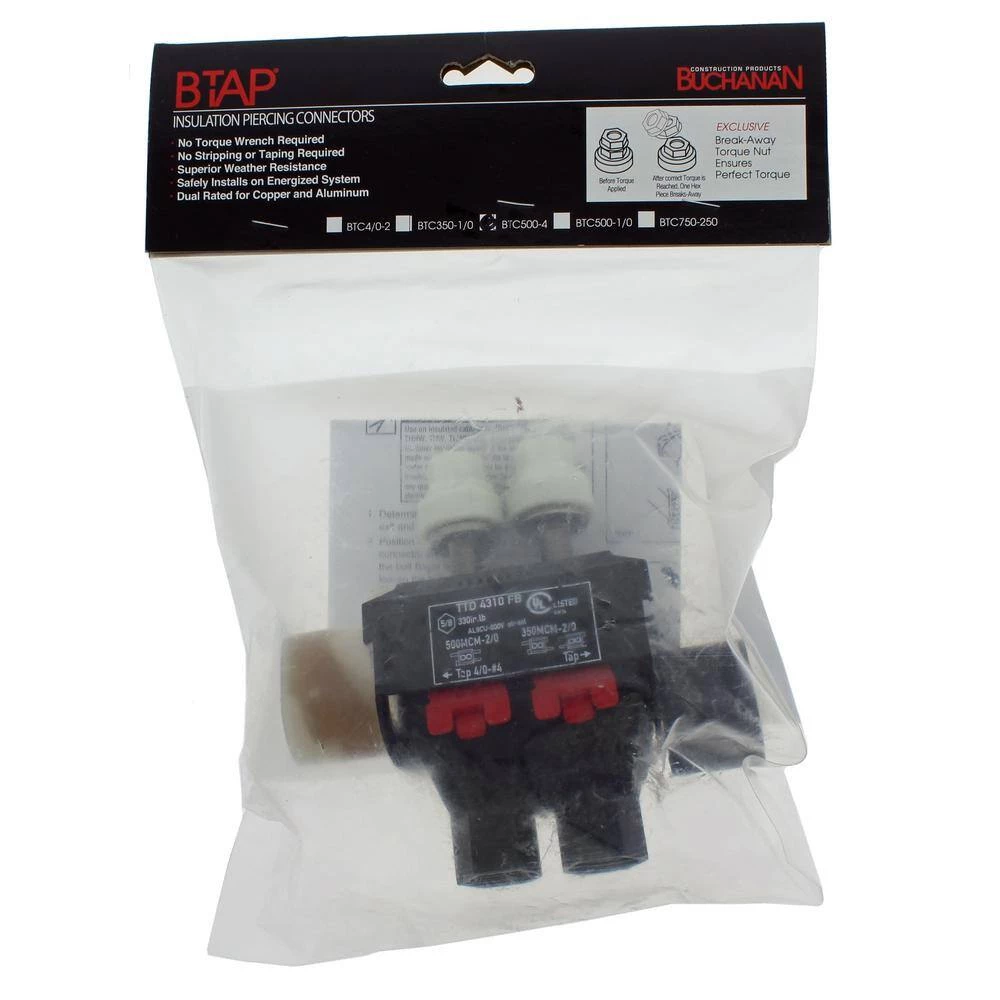

Main 500 – 2/0 AWG, Tap 4/0 – 4 AWG B-Tap Connector by IDEAL

Safe, dependable, and easy. No other connector offers as much as the B-TAP Insulation Piercing Connector. B-TAP connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap, and much more. Self-insulating and weather-proof, B-TAP connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulation-piercing design eliminates downtime and power interruptions. That translates into a 60% installed savings compared to split bolts.

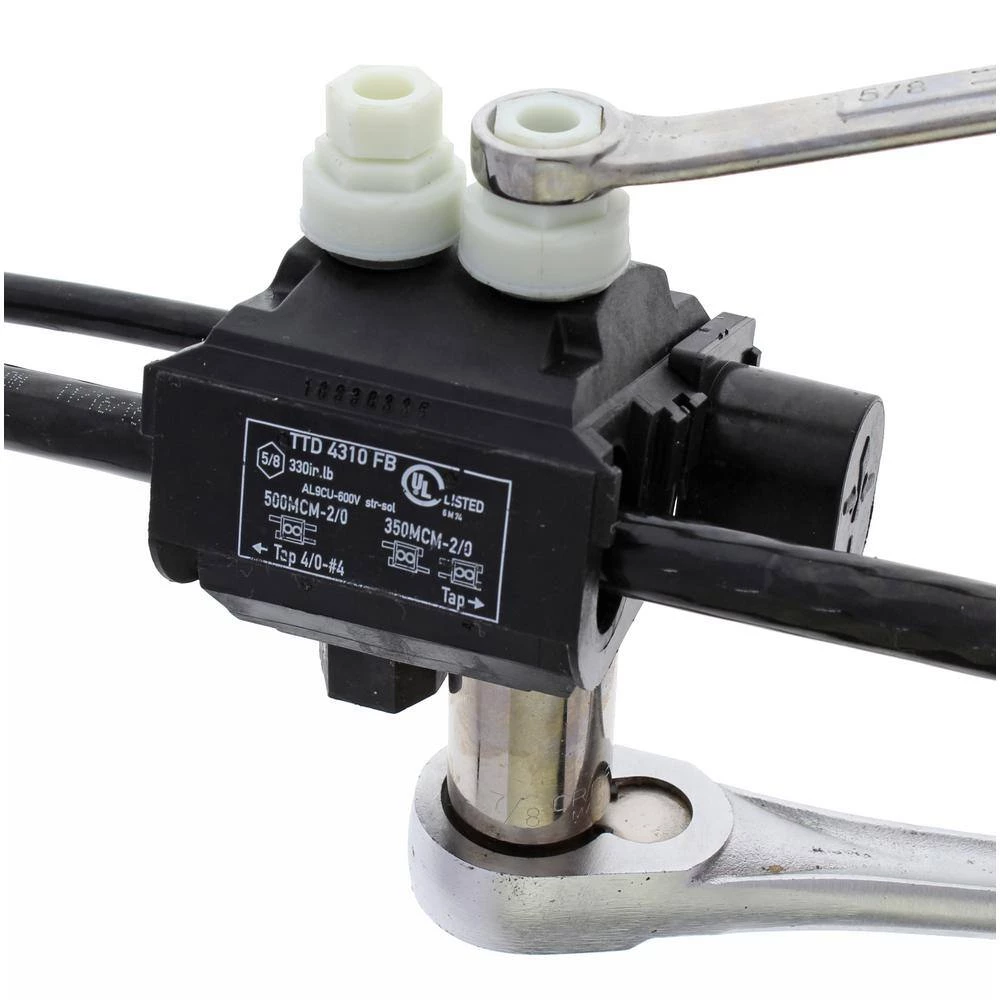

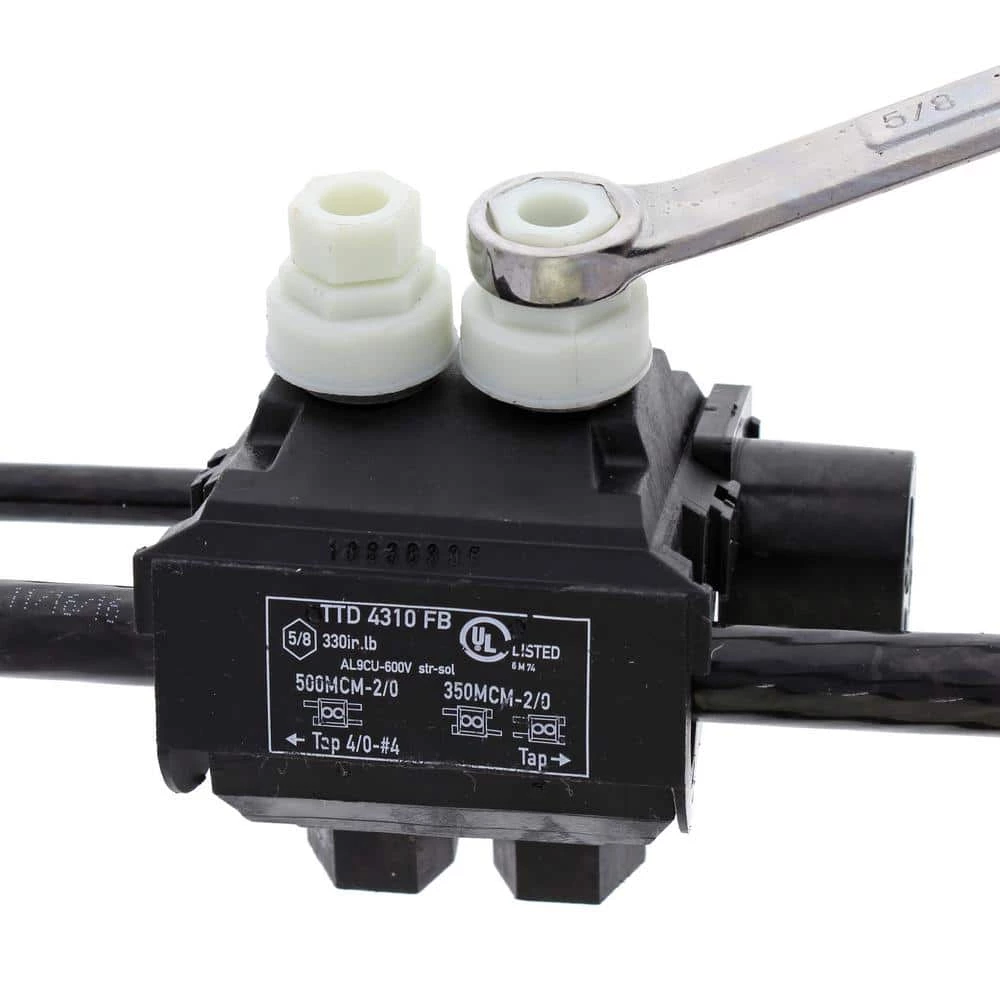

• Breakaway torque nut snaps off when UL torque requirements are met

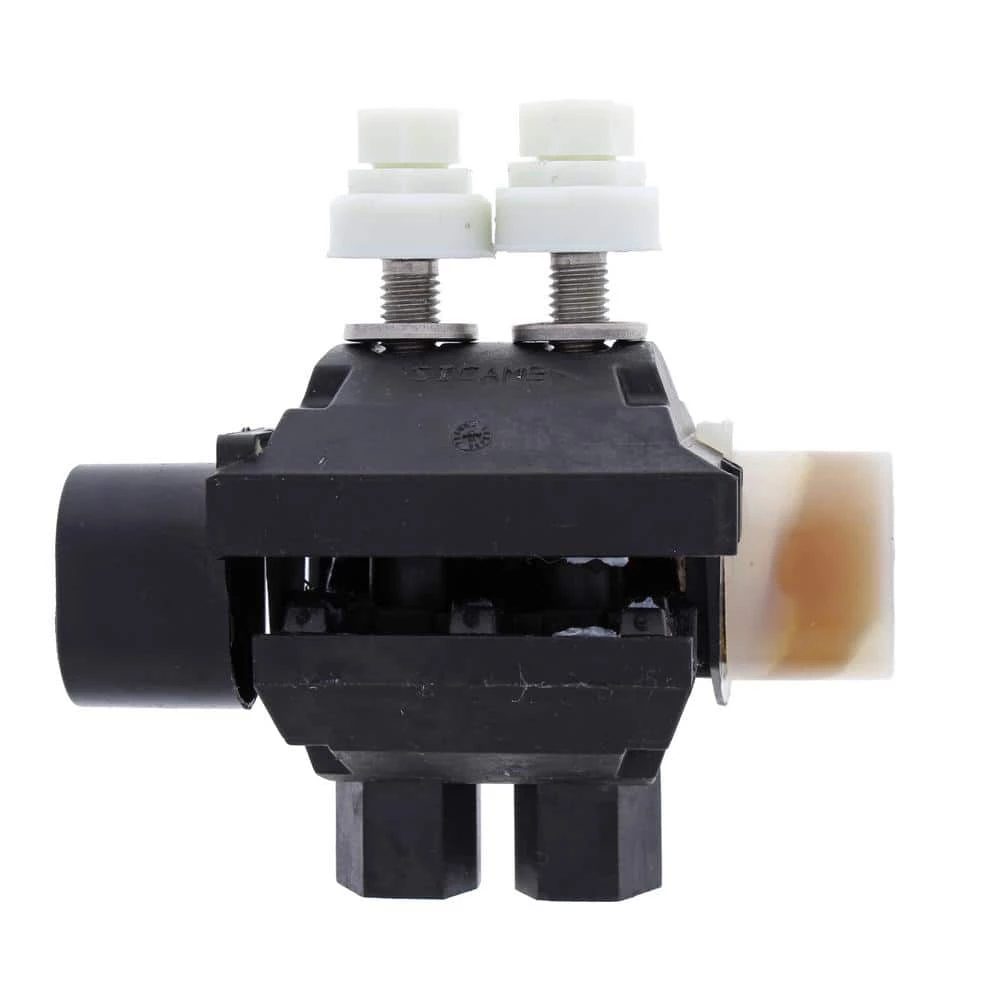

• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape
• Safely installs on energized systems Grease-filled end cap seals end of conductor for superior weather protection
• Grease-filled boots protect copper teeth from corrosion and prevent arcing

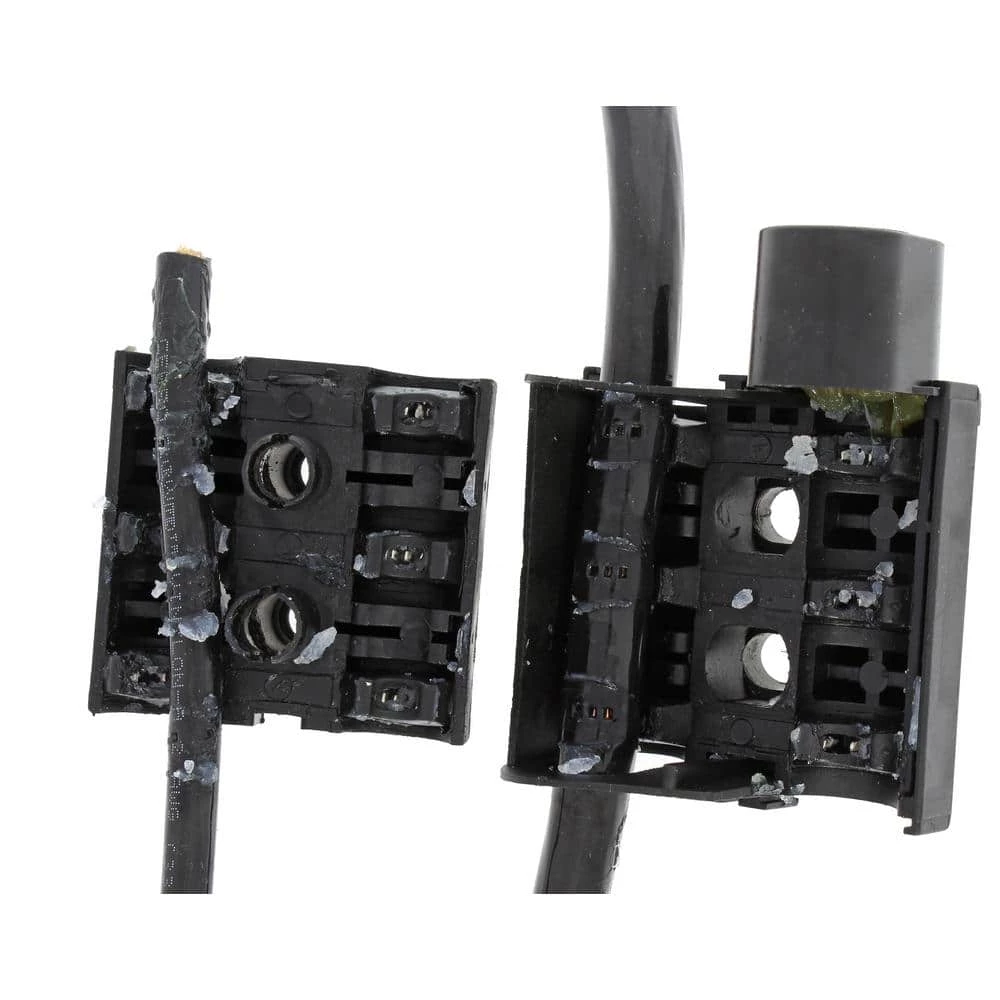

• Hardened copper teeth pierce insulation and bite into conductors
• Rated to 194 F / 90C and 600V
• Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
• Conductor Range: Run 500-2/0 AWG, Tap 4/0-4 AWG
