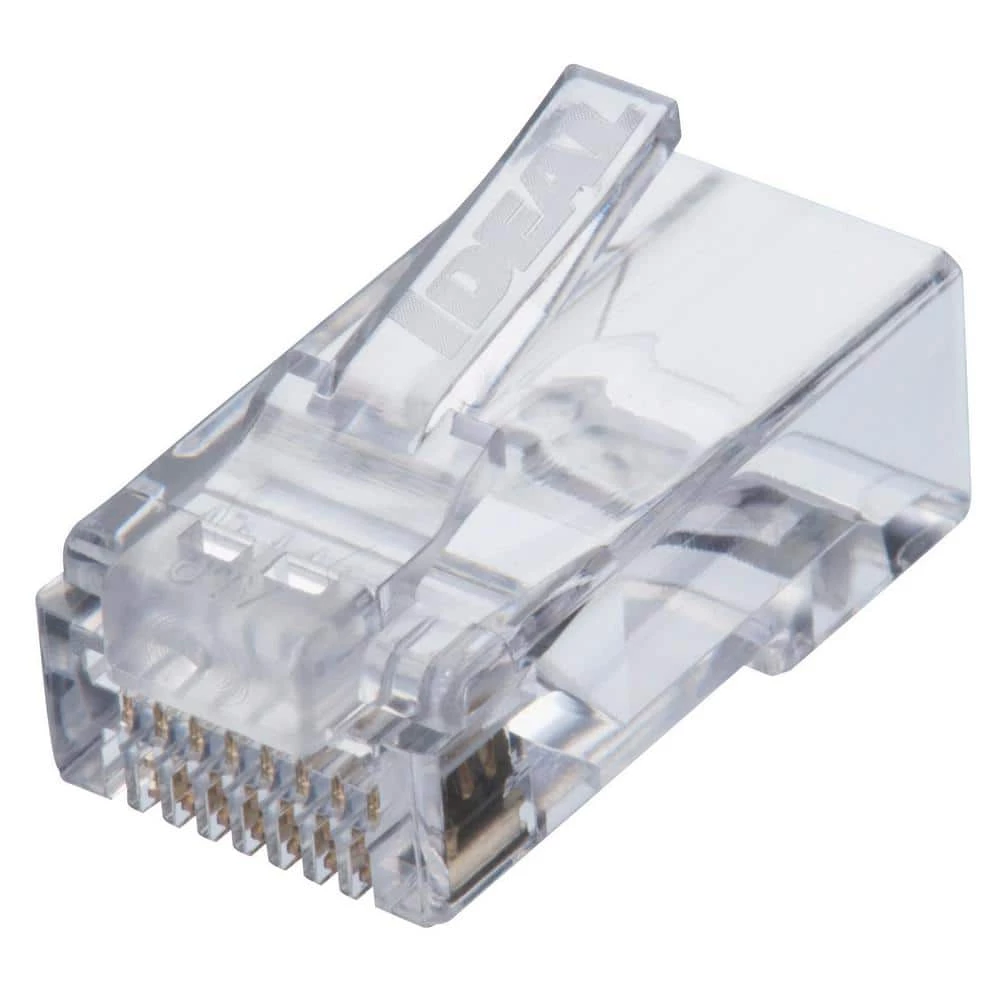

Cat6 Feed-Thru RJ45 Modular Plug (25-Pack) by IDEAL

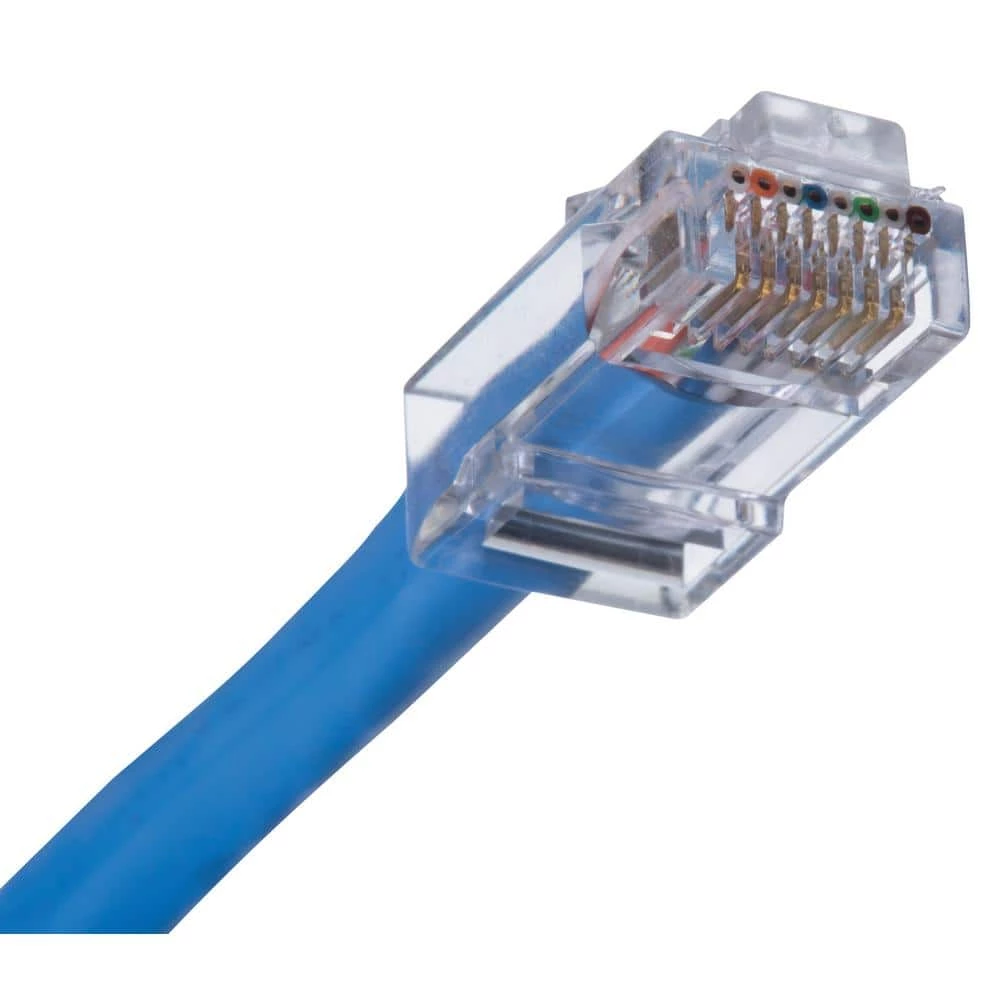

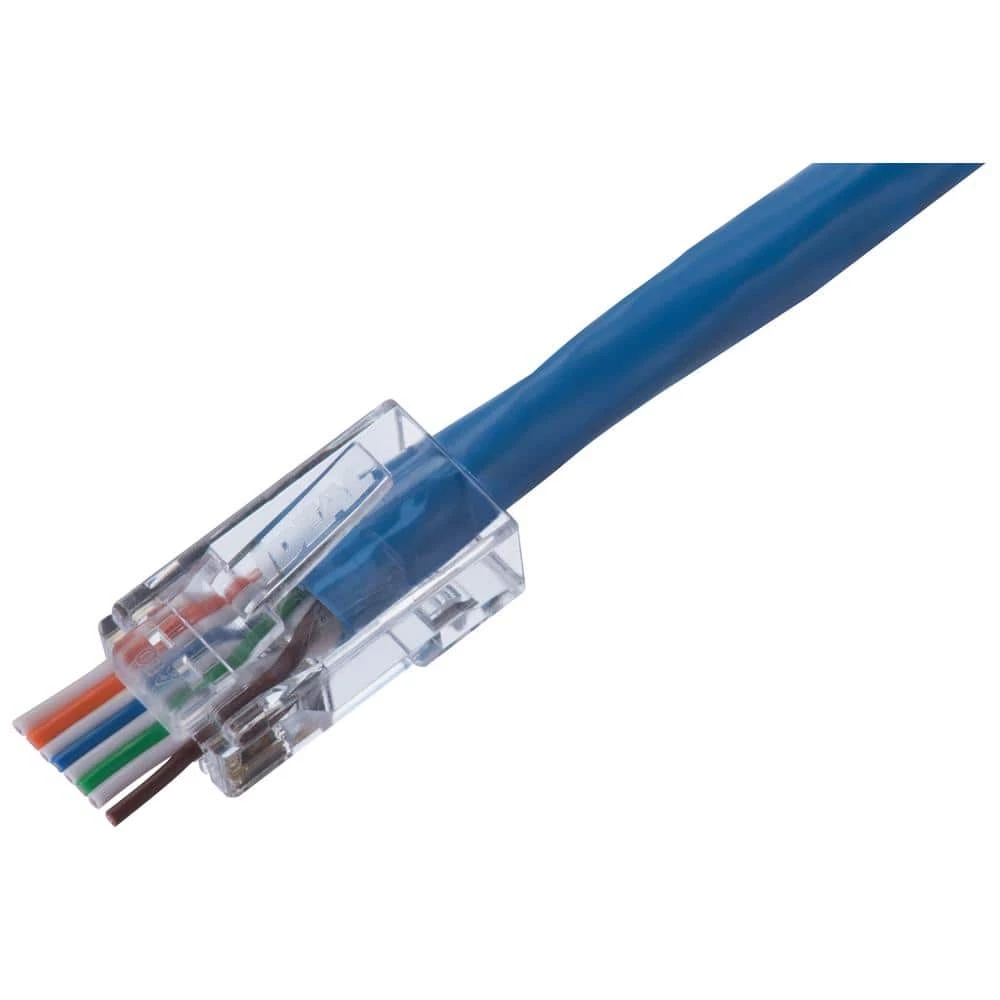

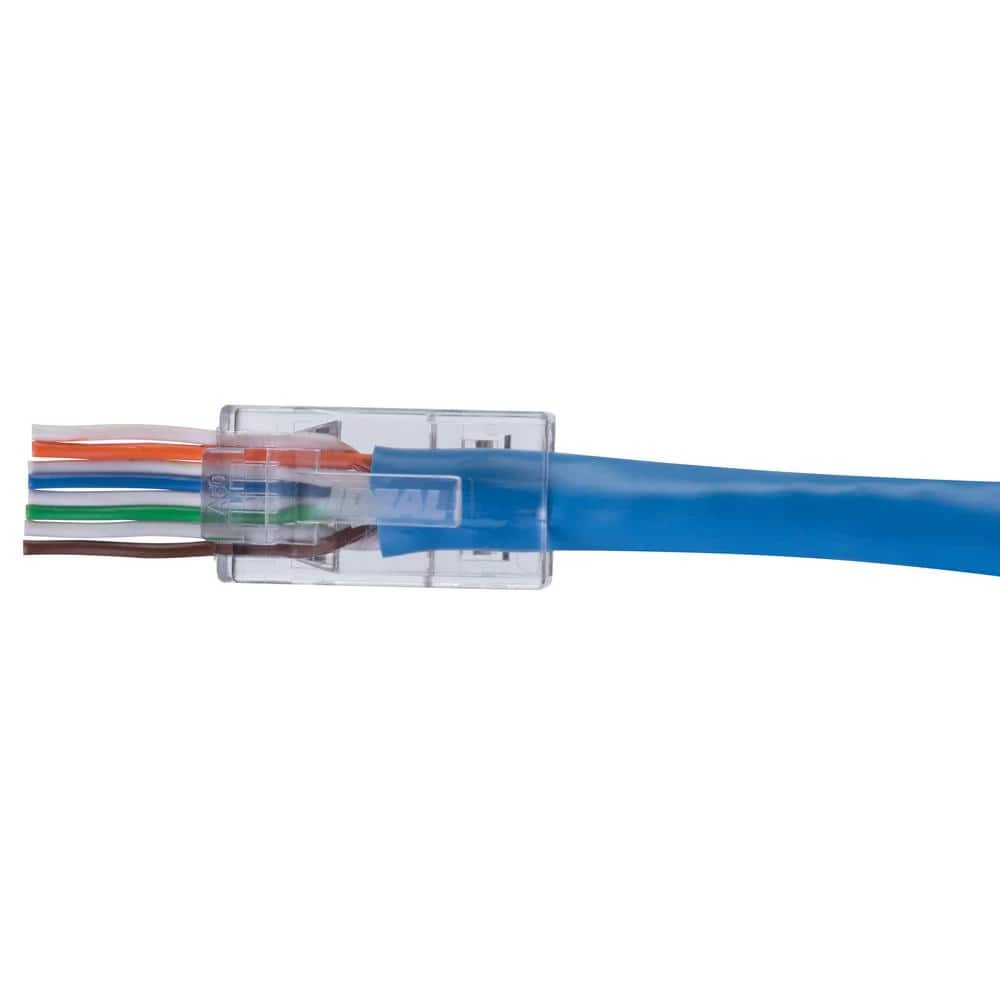

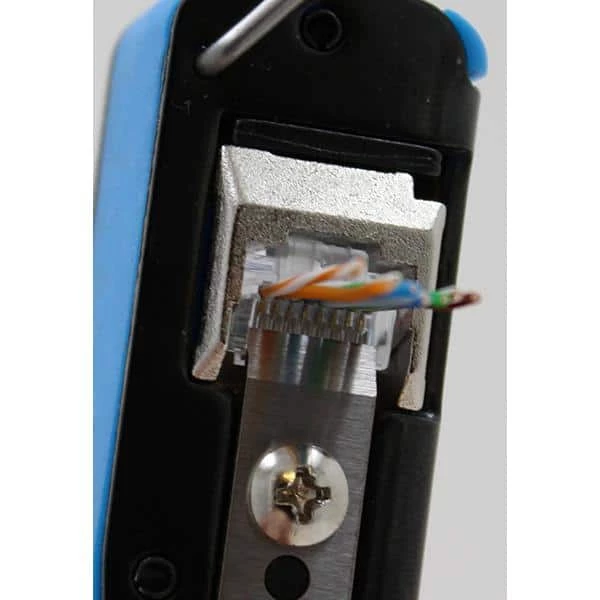

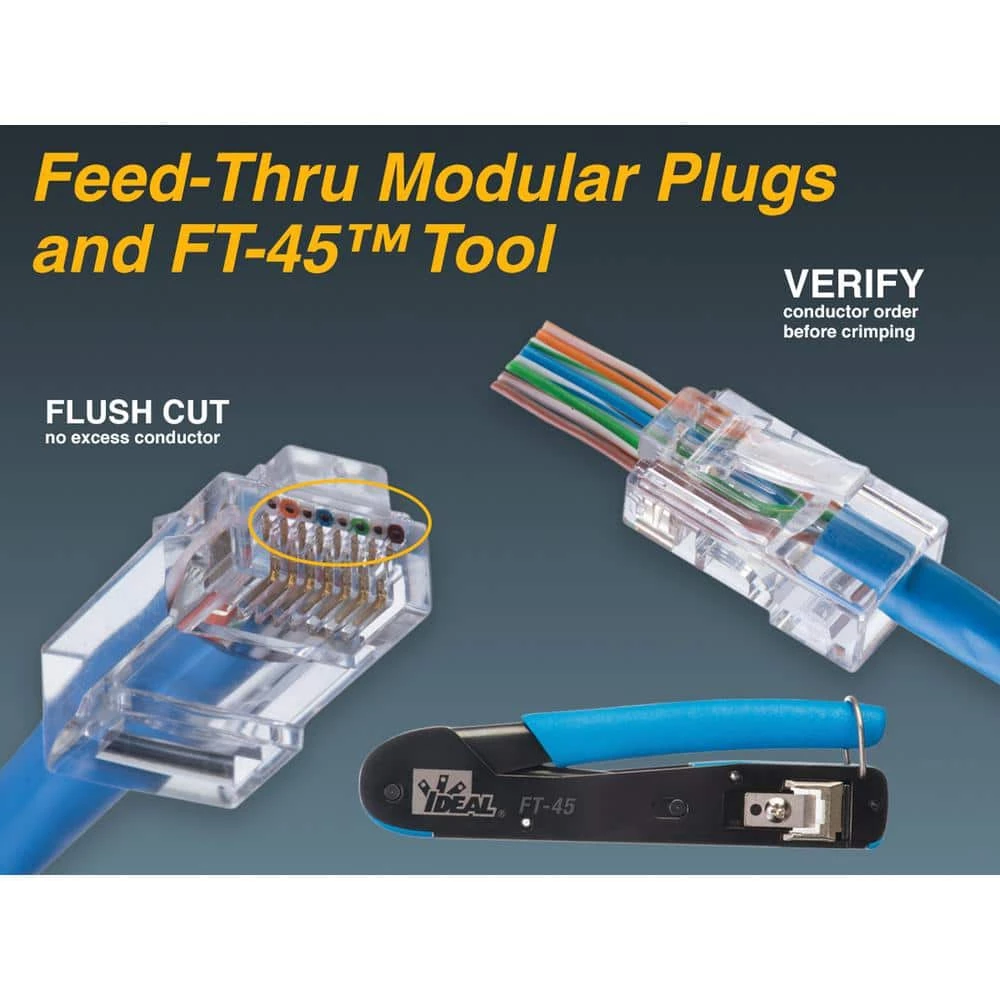

CAT6 Feed-Thru connectors are single piece connectors that use the same assembly process, no special assembly or multiple pieces for CAT6. Open-end Feed-Thru connectors offer several advantages over standard closed end connectors. Conductor order can be verified prior to crimping. Conductors that Feed-Thru the connector are inserted far enough to be pierced by the pin below. The cable can be pushed or pulled into the connector to ensure that the twisted pairs are as close to the pin contacts as possible and that the jacket is seated beyond the primary strain relief for a secure connection. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45 tool.

• Conductors trimmed to the correct length by the tool – no measuring
• Eliminates wasted connectors due to incorrect assembly
• Verify conductor order before crimping
• Single piece design
• Feed-Thru modular plugs simplify twisted pair assembly process
• Pair twists maintained within 1/4 in. of contact
• 3 pin IDC contact, 50 gold plated over 150 nickel, secured in place – no loose pins in the package
• Conductors fully seated above pin contact, no opens due to a short/misaligned conductor
