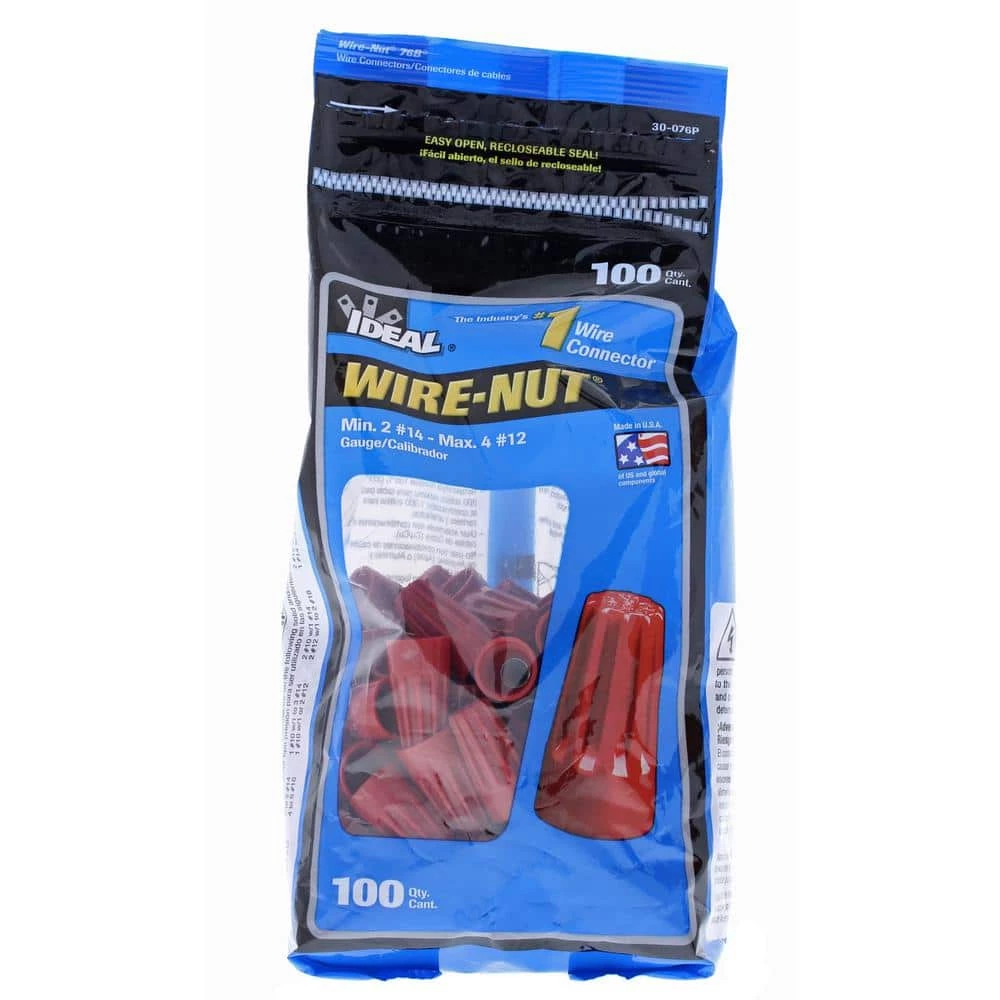

76B Red WIRE-NUT Wire Connectors (100 per Bag, Standard Package is 2 Bags) by IDEAL
Original price was: $13.24.$8.61Current price is: $8.61.
Square-wire spring for a long-lasting secure connection
Flashover protection with deep skirt structure
Easy installation with positive-grip design
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange

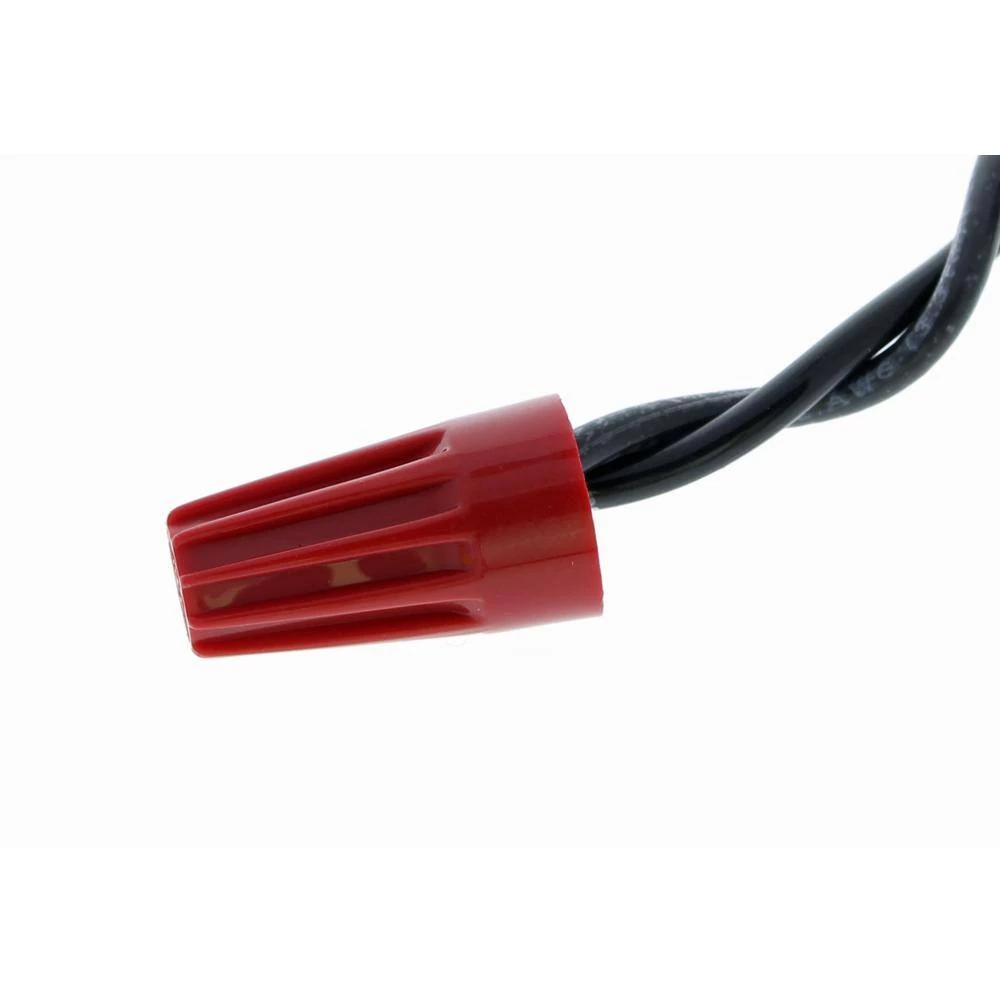

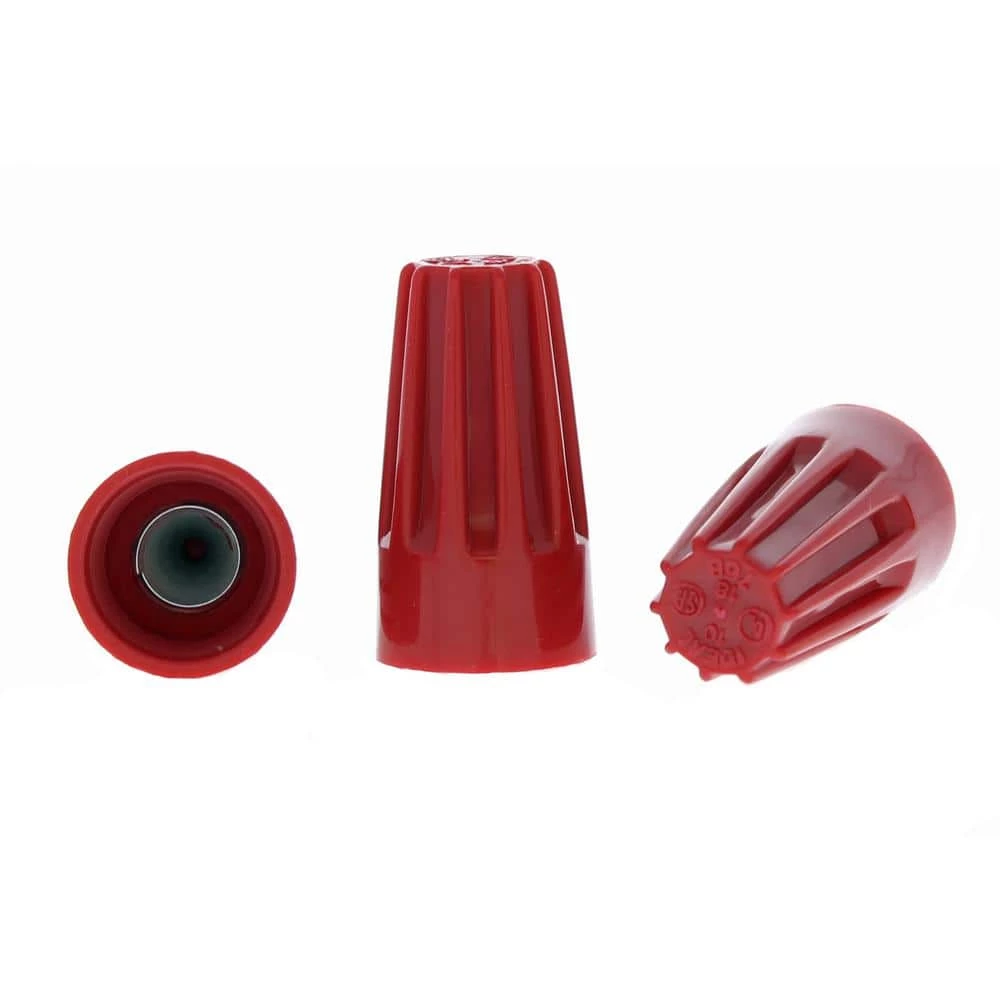

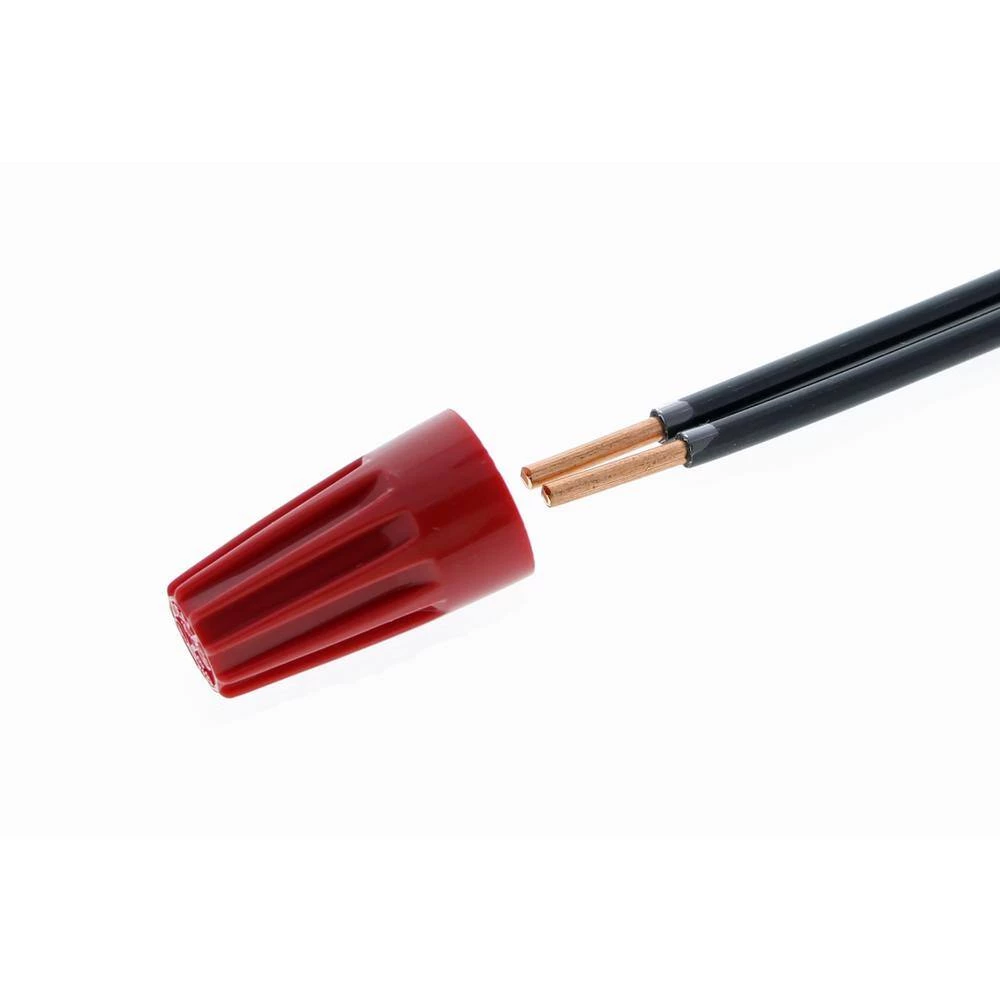

The Ideal WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won’t relax over time.
- Positive-grip design requires no pre-twisting for fast, easy installation
- For use with #18 to #8 AWG copper conductors
- Minimum wire range: 2 #14 AWG, maximum wire range: 4 #12 AWG
- Rated to 600-Volt max
- Deep skirt helps protect against flashover
- Reusable for easy circuit changes and additions
- Tough UL 94 Volt-2 flame-retardant shell rated at 221°F
- UL listed to 486C and CSA certified to C22.2 #188
- Compliant with federal specification w-s-610E
| Color Family | Red |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | 4 #12 AWG |
| Minimum Wire Capacity | 2 #14 AWG |
| Package Quantity | 200 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | See http://www.idealind.com or call Customer Assistance for warranty details. |
| Connector Depth (in.) | 059 |
| Connector Height (in.) | 1.06 |
| Connector Width (in.) | 059 |
