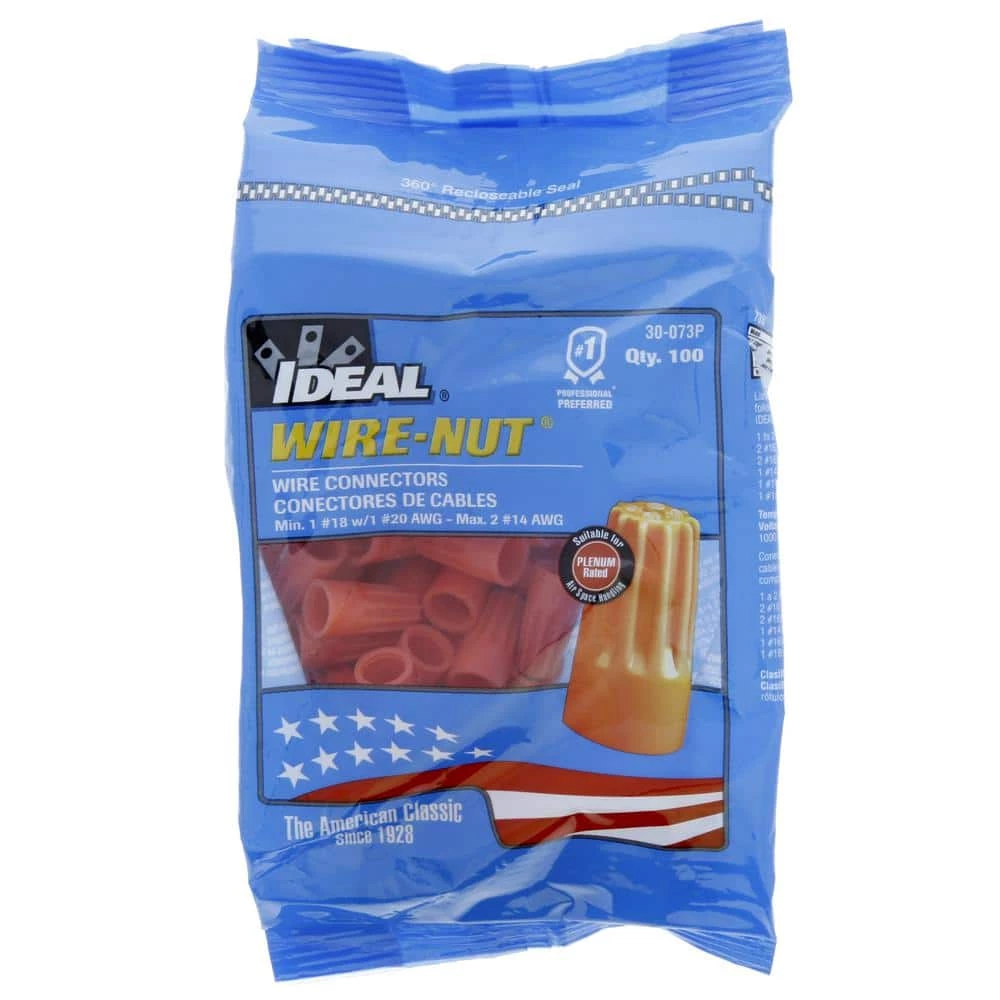

73B Orange WIRE-NUT Wire Connectors (100-Pack) by IDEAL
Original price was: $11.98.$8.87Current price is: $8.87.
Postive grip shell desgined for fast, easy installation
Fixed, square-wire spring creates secure connection
Deep skirt protects against flash-over
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange

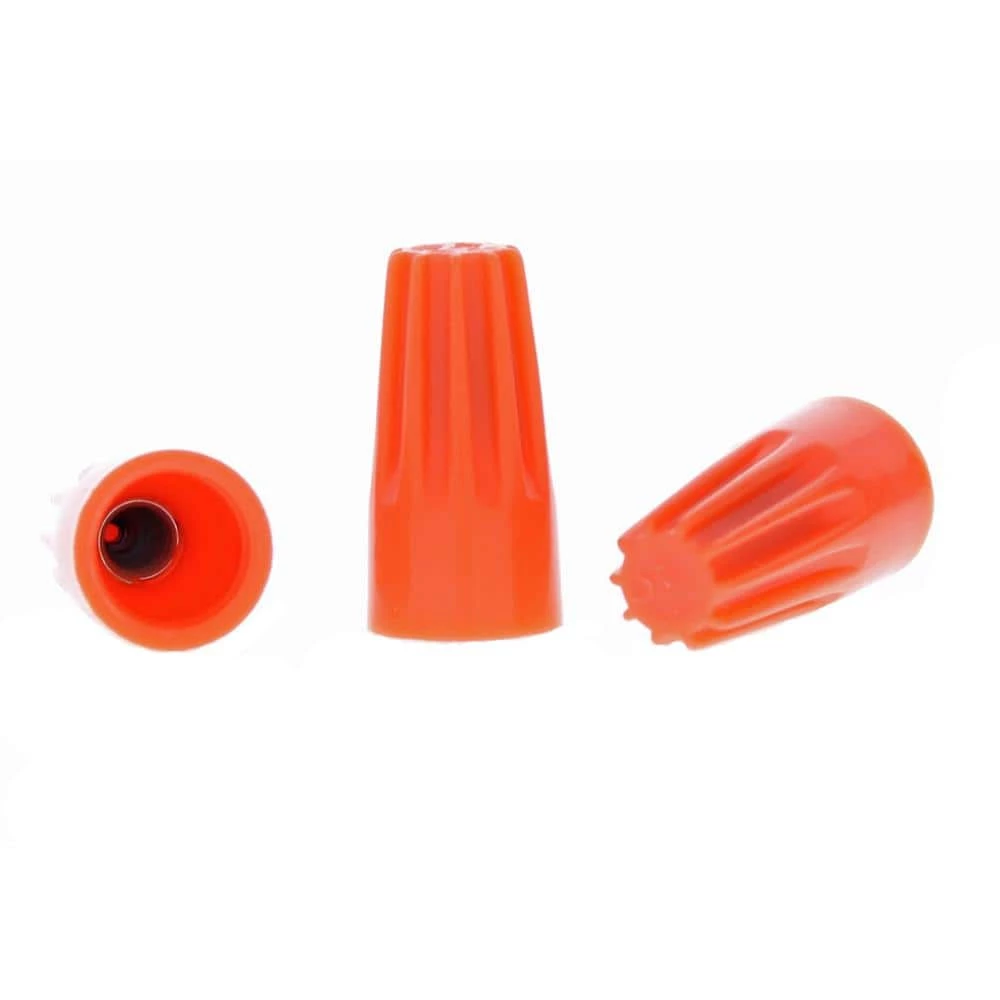

The IDEAL WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won’t relax over time.
- Standard twist-on wire connector to join and insulate 2 or more wires
- Use on bare copper wire
- Tough UL 94V-2 flame-retardant shell rated at 221°F (105°F celsius)
- Positive-grip design requires no pre-twisting for fast, easy installation
- Fixed, square-wire springs create their own threads to maintain a secure positive grip that will not relax over time
- Deep skirt helps protect against flashover
- 600-Volt maximum voltage
- Minimum wire capacity of one #18 wire and one #20 wires
- Maximum wire capacity of two #14 wires
- Reusable for easy circuit changes and additions
- UL Listed to 486C and CSA certified to C22.2 #188
- Compliant with federal specification w-s-610E
| Color Family | Orange |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | Max. 2 #14 |
| Minimum Wire Capacity | Min. 1 #18 & 1 #20 |
| Package Quantity | 100 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | See http://www.idealind.com or call Customer Assistance for warranty details. |
| Connector Depth (in.) | .44 |
| Connector Height (in.) | .86 |
| Connector Width (in.) | .44 |
