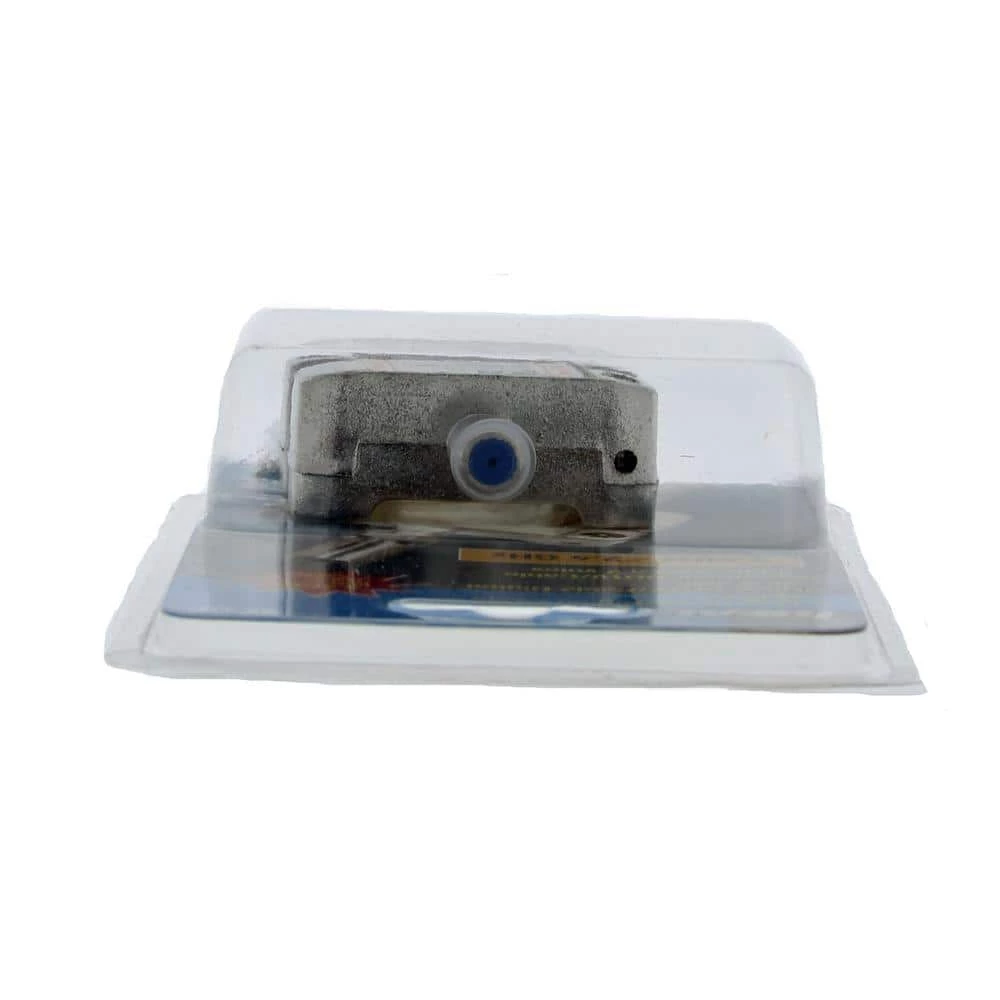

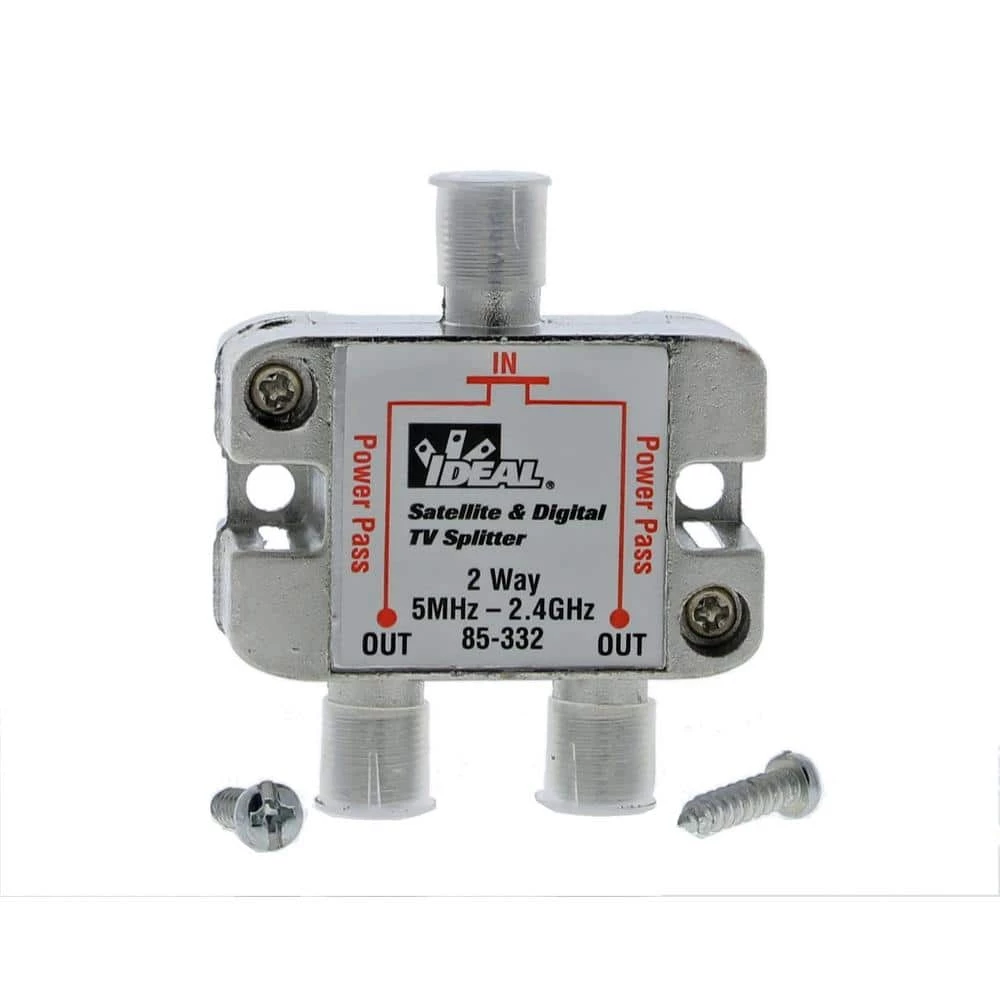

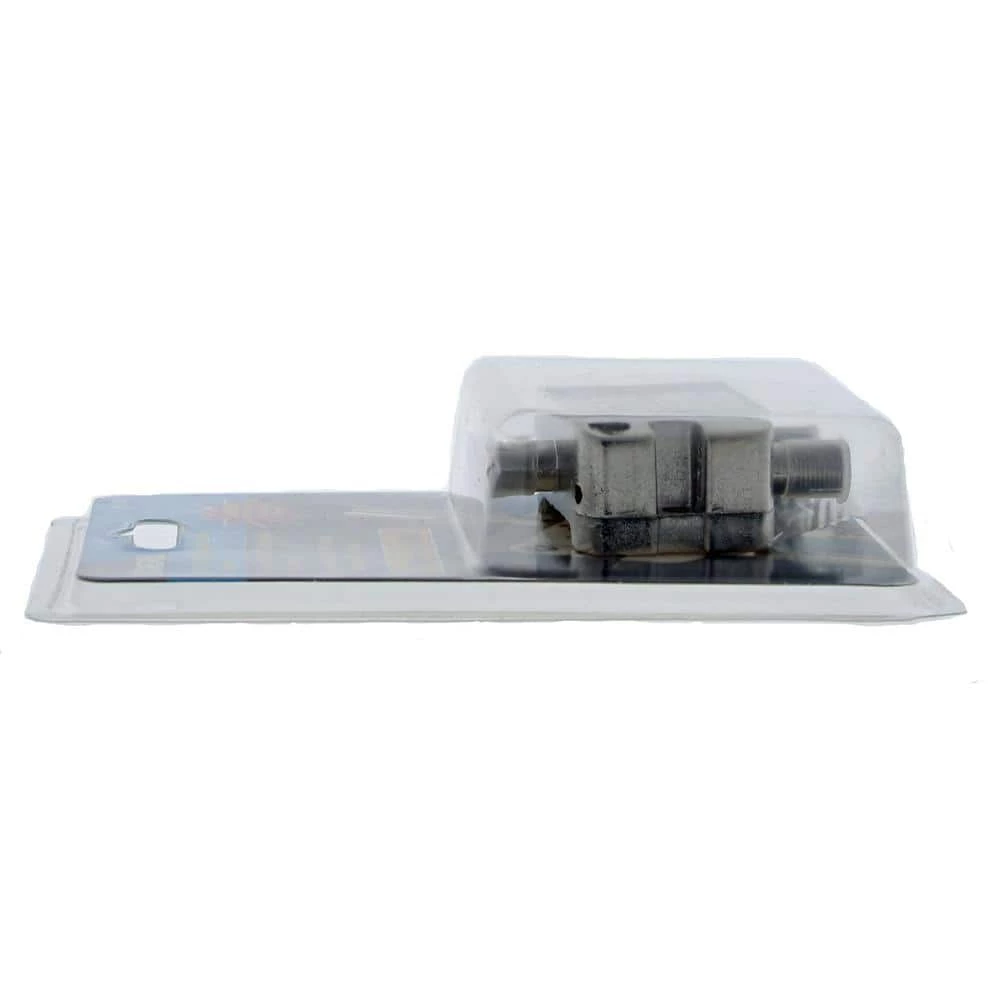

5 MHz – 2.4 GHz 2-Way Digital Splitter (Standard Package, 3 Splitters) by IDEAL

High performance 2.4 GHz Digital Splitters are used for splitting a single coax line into 2 lines. These splitters are designed for applications that operate in the 5 MHz to 2.4 GHz range, which include Satellite, Digital/HD Cable TV, Broadcast (over the air) TV, CCTV and other general-purpose coaxial cable splitting requirements. Splitters support the 1 GHz to 2.4 GHz frequency range for satellite and on-demand cable television services. All ports on the 2.4 GHz splitters are power pass enabled. This allows any of the ports to be used to pass power from the satellite set top box to the satellite dish or multi-switch. All splitters include an internal printed circuit board design inside of a nickel plated zinc die cast housing which helps to improve overall splitter performance in return loss, insertion loss and port-to-port isolation measurements, resulting in a stronger, cleaner signal with more protection from outside signal interference. All 2.4 GHz splitters have a solid, sealed body for improved EMI/RFI performance. Machine formed threads on the F ports allow for smooth connector mating.

• Nickel-plated housing – designed for indoor use
• Pair of grounding screws eliminates the need for a grounding block
• Use terminators (85-038) on all unused ports for optimal performance
• EMI/RFI shielding effectiveness: -80 dB

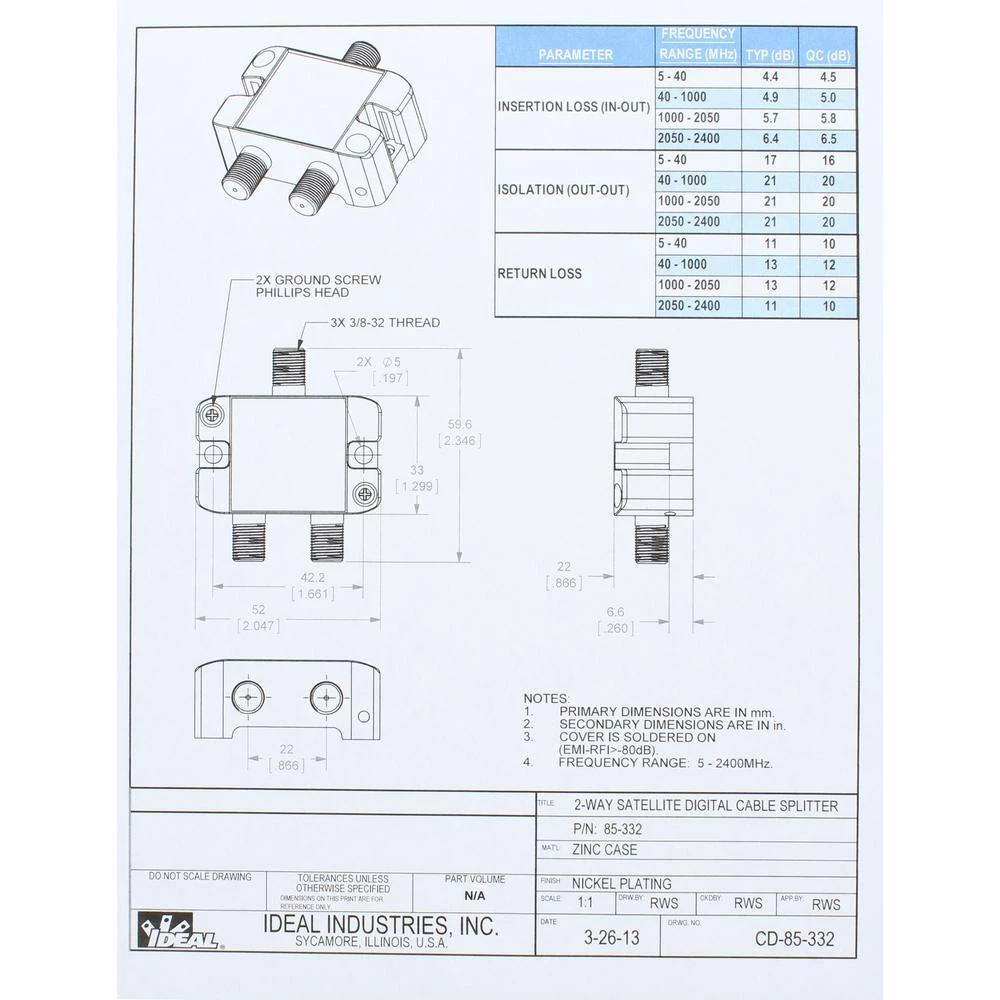

• Insertion loss: 4.4dB to 6.4dB over rated frequency range
• For 75Ω coaxial cable systems
