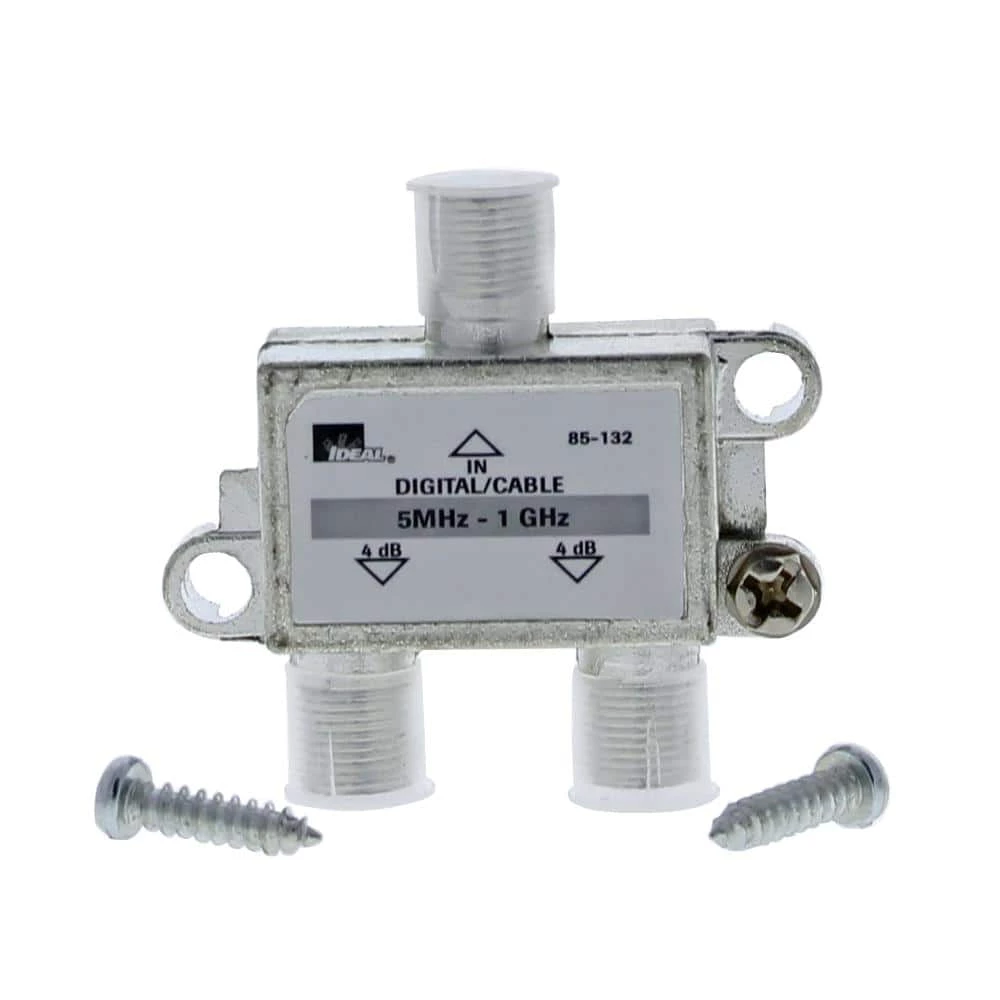

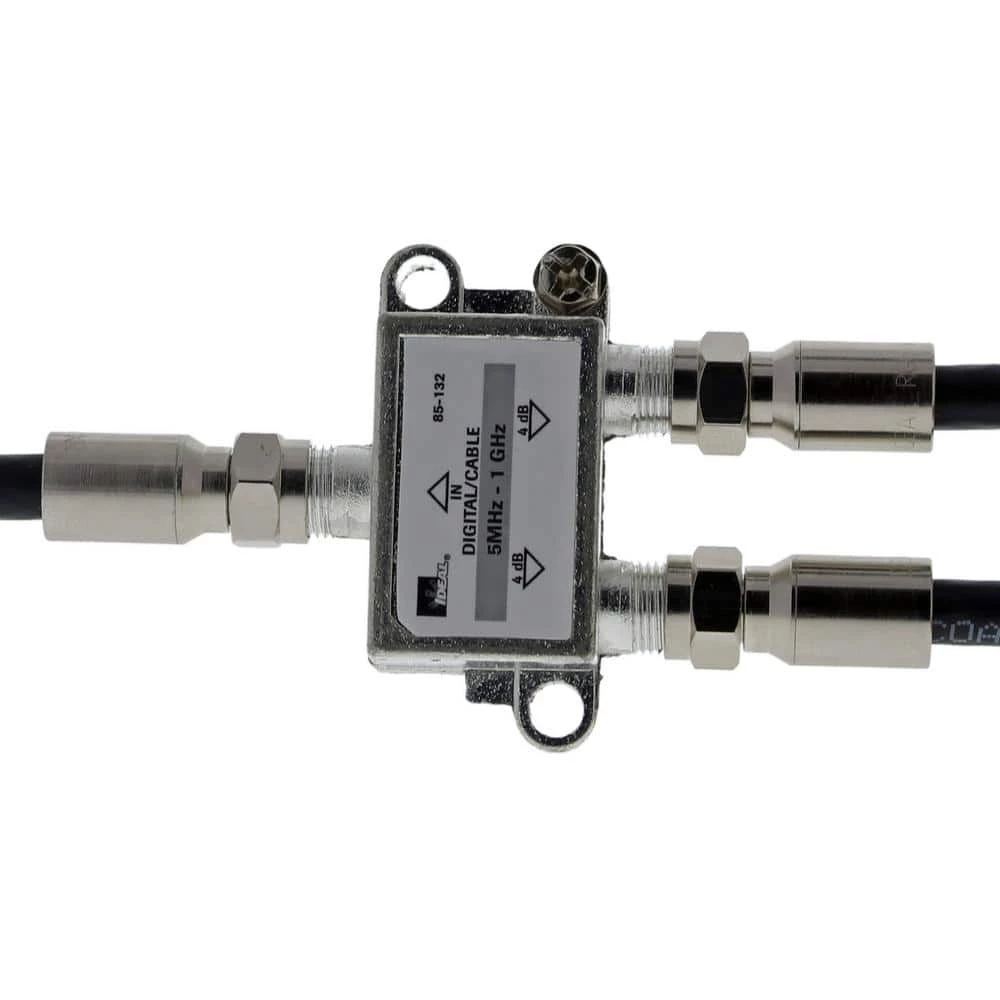

5 MHz – 1 GHz 2-Way High-Performance Cable Splitter (Standard Package, 4 Splitters) by IDEAL
Original price was: $13.23.$8.86Current price is: $8.86.
Share video signals to 2 locations
Watch TV in additional rooms
For RG 6 and 59 coax types
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange
High performance 1 GHz Digital Splitter is used for splitting a single coax line into two lines. Designed for applications, which include: Digital/HD Cable TV Broadcast (over the air) TV, CCTV, and other general-purpose coaxial cable splitting requirements. Splitter includes an internal printed circuit board design inside of a nickel plated zinc die cast housing which helps to improve overall splitter performance in return loss, insertion loss, and port-to-port isolation measurements, resulting in a stronger, cleaner signal with more protection from outside signal interference.
- Soldered back (not glued) for improved EMI/RFI performance
- Machine formed threads on the F ports allow for smooth connector mating
- Nickel-plated zinc construction

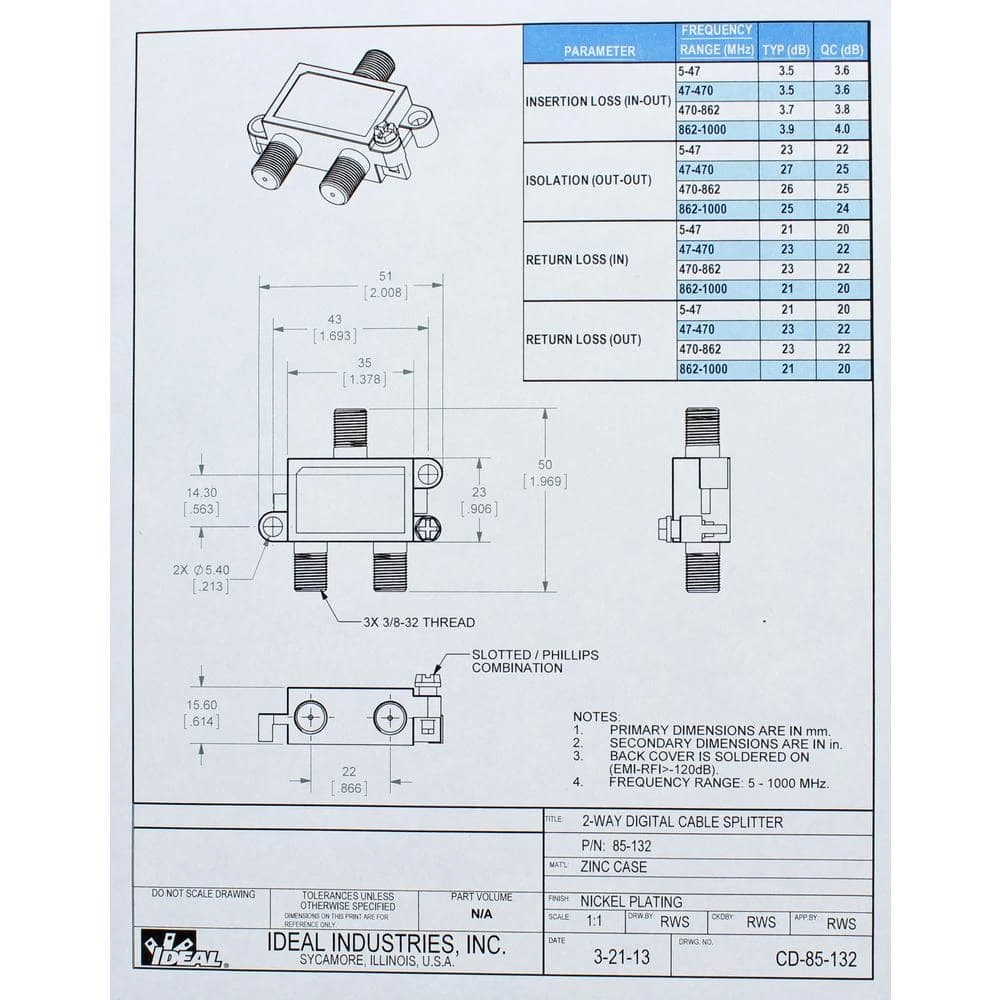

- EMI/RFI shielding effectiveness: -120dB
- Insertion loss: 3.5dB to 4.0dB over rated frequency range
- For 75Ω coaxial cable systems
| Maximum Frequency (GHz) | 1.0 |
|---|---|
| Minimum Frequency (MHz) | 5.0 |
| Returnable | 90-Day |
| Splitter Type | 2-Way (Y Cable) |
| Manufacturer Warranty | LIMITED WARRANTY – This product is guaranteed to be free from defects in material and workmanship for a period of one (1) year from date of purchase. A defective product will be repaired or replaced free of charge. Excludes defects caused by abuse, misuse, neglect, alterations or accidents. Consequential or incidental damages are not recoverable under this warranty. |
| Product Depth (in.) | .75 in |
| Product Height (in.) | 2.0 in |
| Product Length (in.) | 2.0 in |
| Product Width (in.) | 2.0 in |
