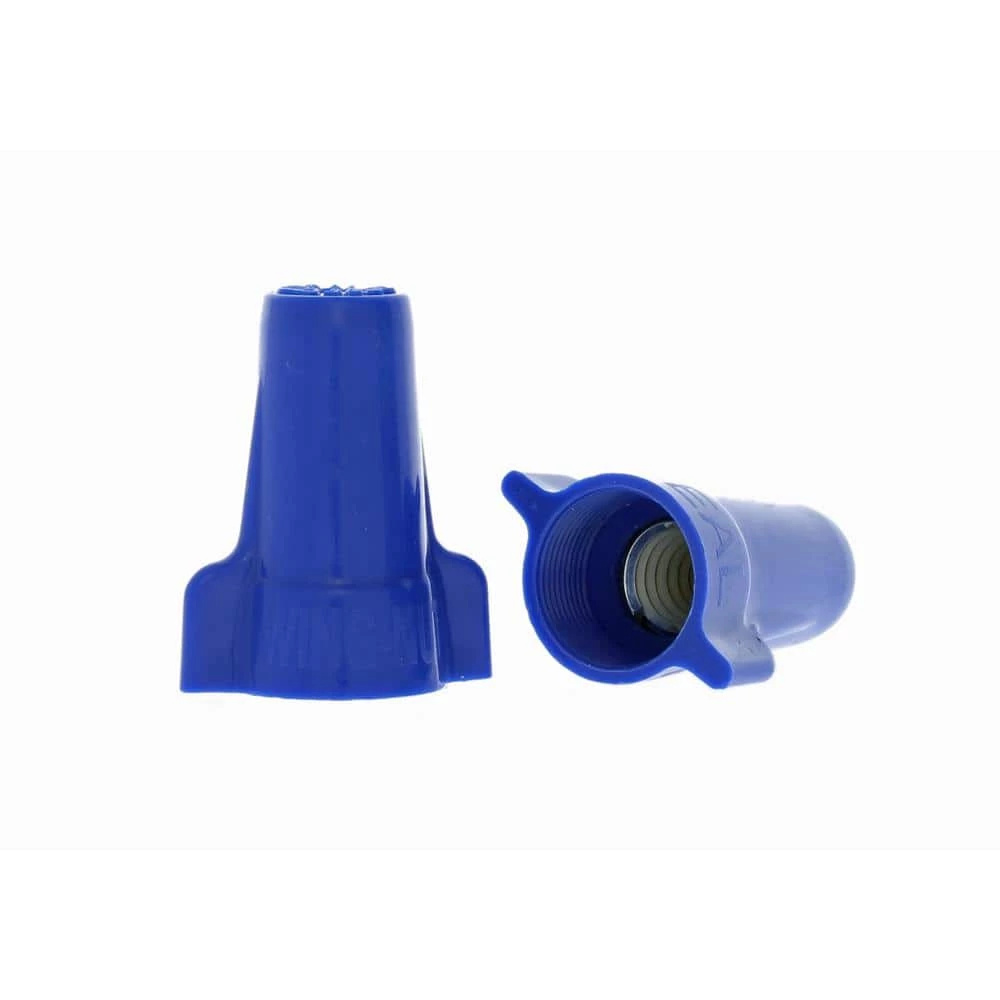

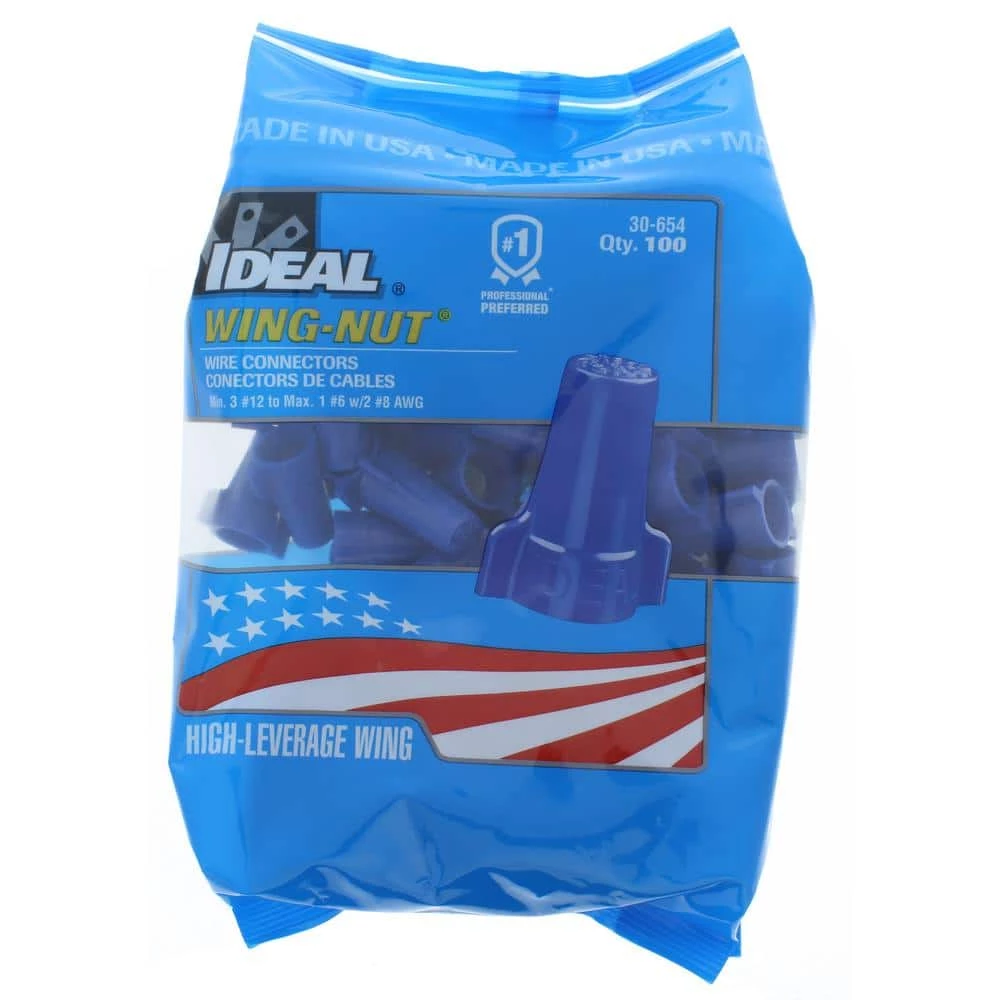

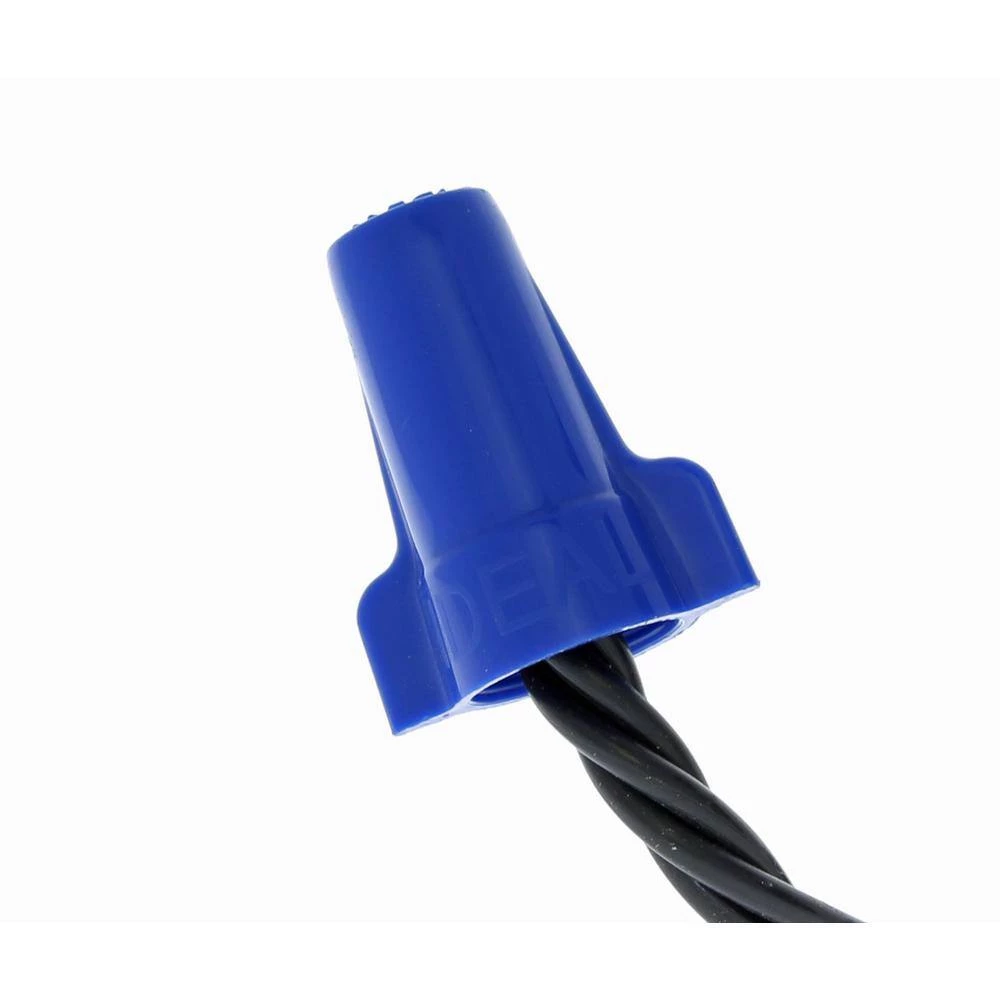

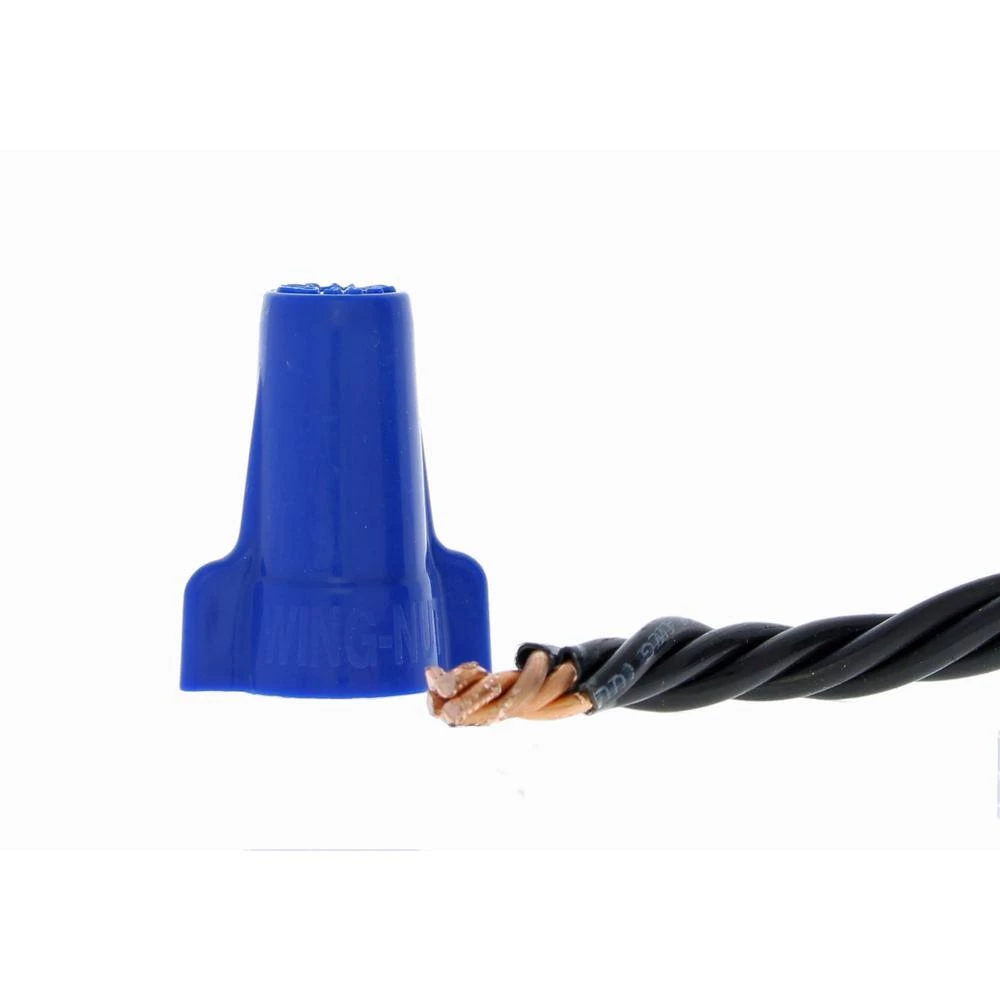

The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands
- High-leverage, contoured wing design provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations

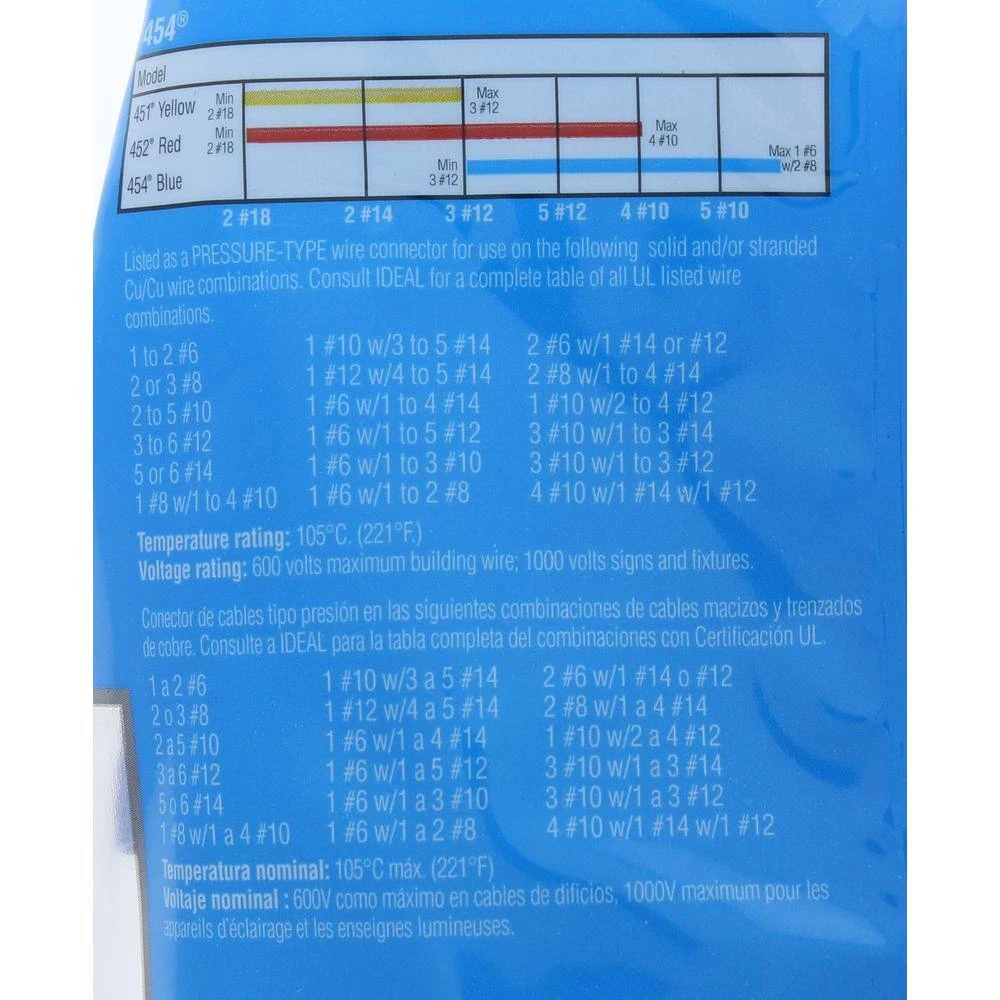

- Wire range 3 # 12 AWG to 1 # 6 w 2 # 8 AWG
- Rated for 600 Volt maximum, 1000 Volt fixtures and signs
- Tough, UL94V-2 flame retardant shell rated at 105 C
- UL Listed and CSA Certified
