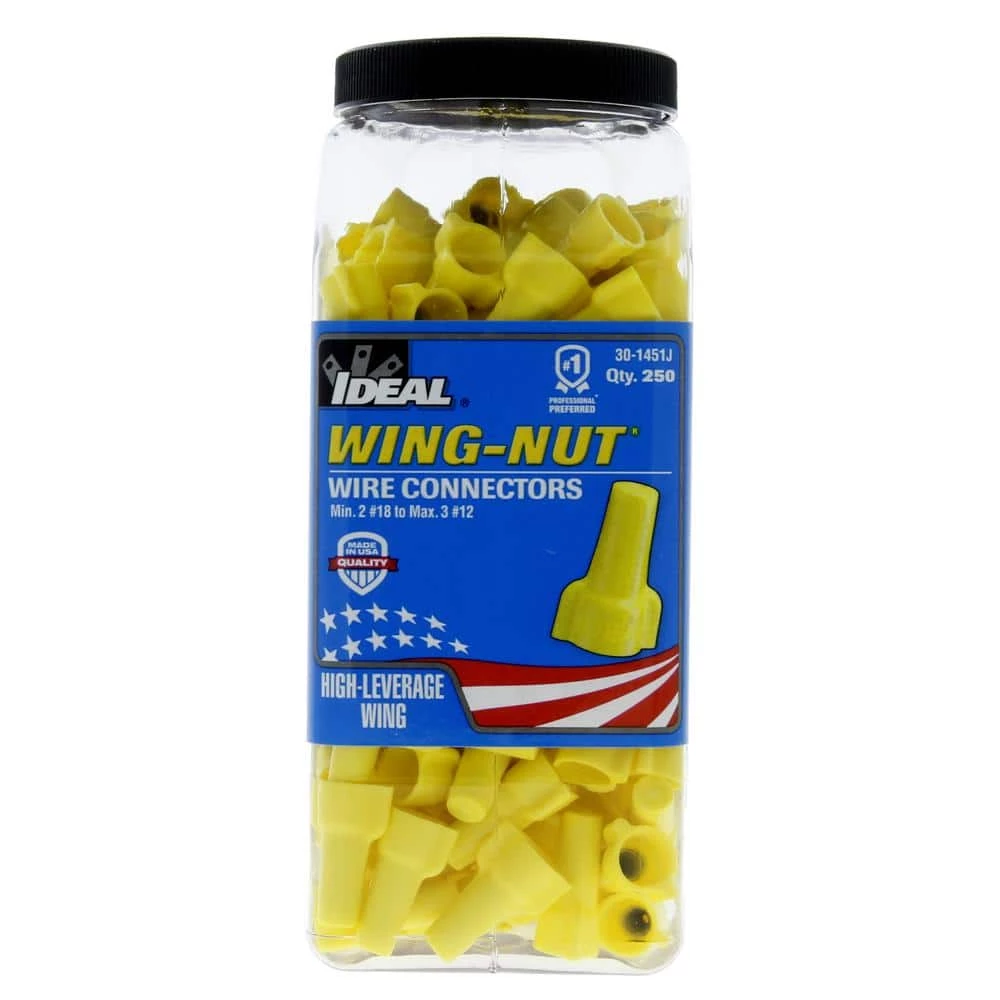

451 Yellow WING-NUT Wire Connectors (250-Pack) by IDEAL
Original price was: $36.93.$22.90Current price is: $22.90.

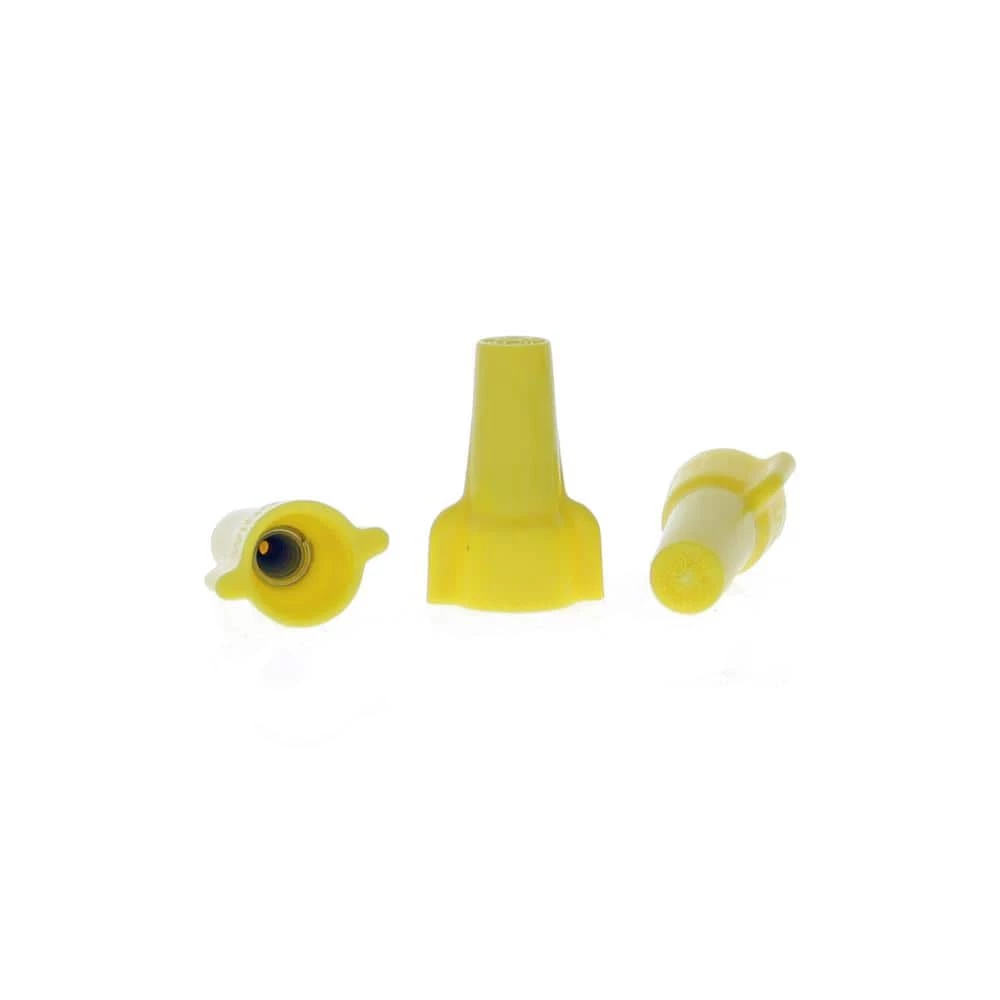

Contoured wing for extra leverage on large combinations
Wide-range spring expands to support large range of combinations
Expanding shell provides smooth, progressive tightening
- Sustainable materials, for a better tomorrow.
- Efficient and effective customer service, online.
- The best quality products, always.
- 7 days return and exchange

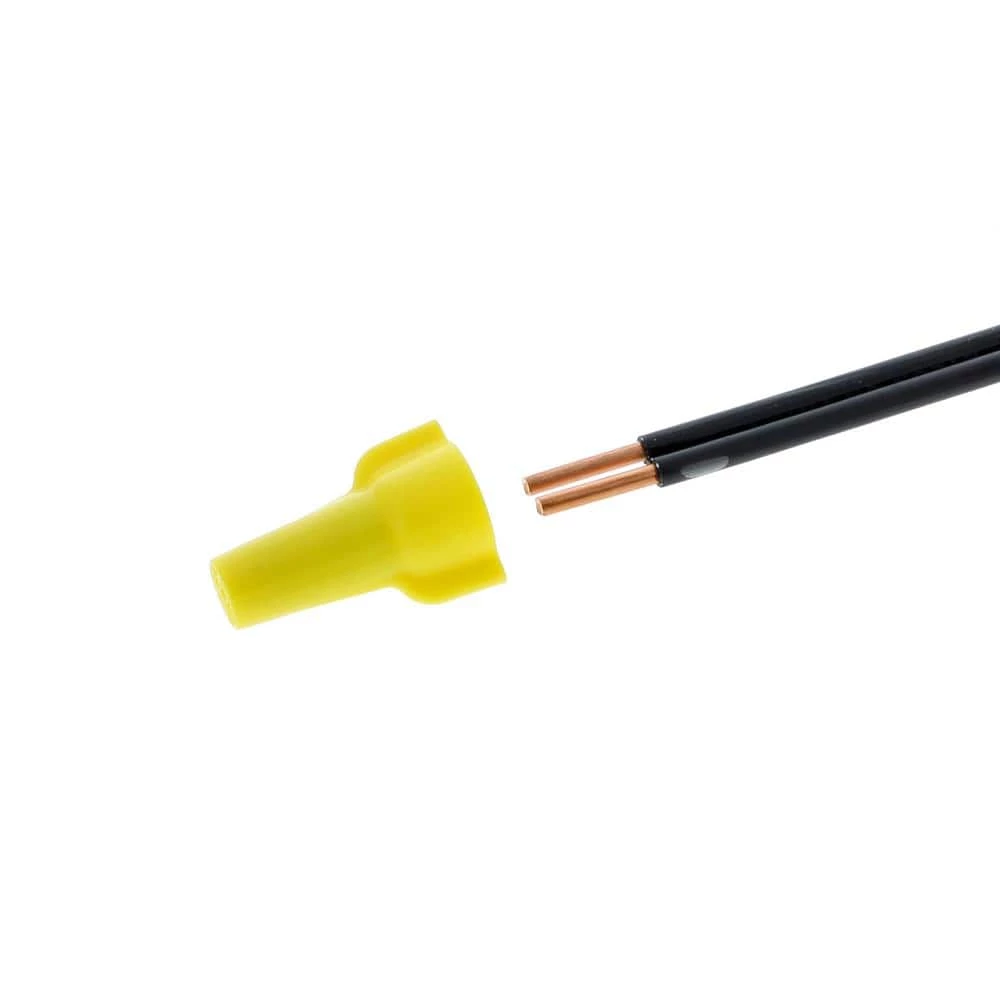

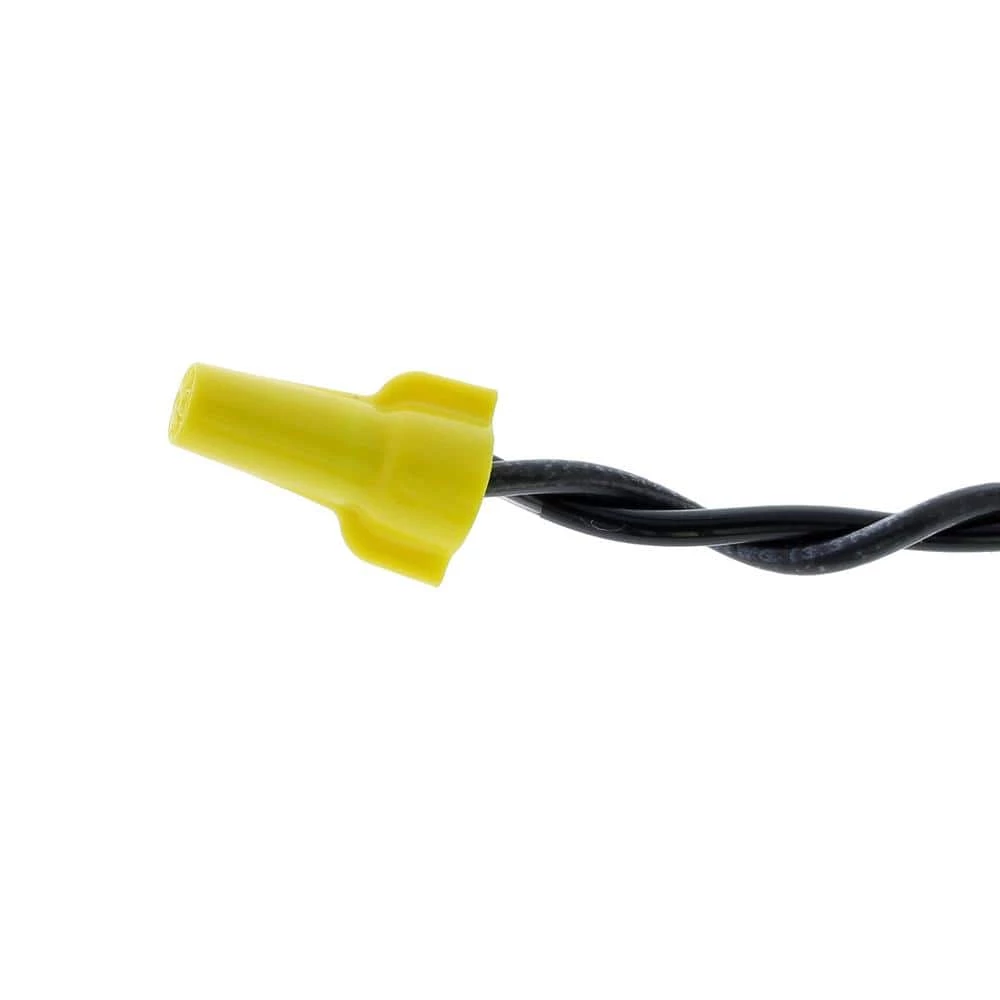

The Ideal Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- For use with #18 to #10 AWG copper conductors
- Minimum wire range: 2 #18 AWG, maximum wire range: 3 #12 AWG
- Rated to 600-Volt max, 1000-Volt signs and fixtures
- Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
- Tough UL 94-Volt-2 flame-retardant shell rated at 221ËšF
- UL listed to 486C and CSA certified to C22.2 #188
- Made in the U.S.A. of U.S. and global components
| Color Family | Yellow |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | Max. 3 #12 AWG |
| Minimum Wire Capacity | Min. 2 #18 AWG |
| Package Quantity | 250 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | See http://www.idealind.com or call Customer Assistance for warranty details. |
| Connector Depth (in.) | .48 |
| Connector Height (in.) | 1.03 |
| Connector Width (in.) | .69 |
